Product Summary
The 1P610S is a low profile, miniature 10dB directional coupler in an easy to use surface mount package designed for MMDS and WLAN applications. The 1P610S is for power and frequency detection as well as power injection. The 1P610S is an ideal solution for the ever-increasing demands of the wireless industry for smaller printed circuit boards and high performance.
Parametrics
1P610S electrical characteristcs: (1)frequency: 2.3 to 2.7GHz; (2)mean coupling: 10±1.75dB; (3)insertion loss: 0.25dB max.; (4)VSWR: 1.22 max:1; (5)freq. sensitivity: ±0.2dB max.; (6)directivity: 20dB min.; (7)power handling: 20 ave CW watts; (8)θJC: 44°C/w; (9)operating temperature: -55 to +85°C.
Features
1P610S features: (1)2.3 to 2.7 GHz; (2)MMDS and WLAN; (3)Very Low Loss; (4)High Directivity; (5)Surface Mountable; (6)Tape and Reel; (7)New Pico-Package; (8)100% Tested; (9)Lead Free.

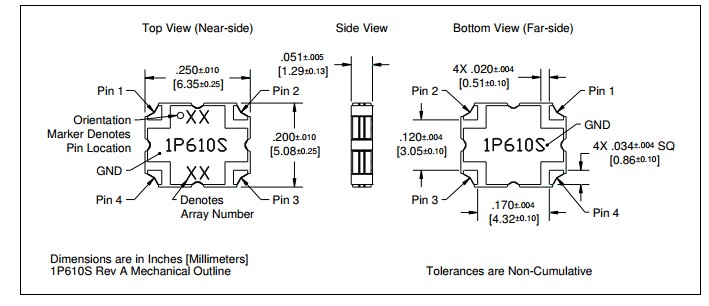

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 1P610S |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
1P610 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
1P610S |
Other |
|
Data Sheet |
Negotiable |
|
||||
