Product Summary

The MRF5S19060NB is an N-Channel Enhancement-Mode Lateral MOSFET. Designed for broadband commercial and industrial applications with frequencies up to 500 MHz. The high gain and broadband performance of the MRF5S19060NB makes it ideal for large - signal, common- source amplifier applications in 28 volt base station equipment.

Parametrics

MRF5S19060NB absolute maximum ratings: (1)Drain-Source Voltage, VDSS: -0.5 to +65 Vdc; (2)Gate-Source Voltage, VGS: -0.5, +15 Vdc; (3)Storage Temperature Range, Tstg: - 65 to +150℃; (4)Operating Junction Temperature, (1,2) TJ: 200℃.

Features

MRF5S19060NB features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters; (2)Internally Matched for Ease of Use; (3)Qualified Up to a Maximum of 32 VDD Operation; (4)Integrated ESD Protection; (5)200℃ Capable Plastic Package; (6)RoHS Compliant; (7)In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.

Diagrams

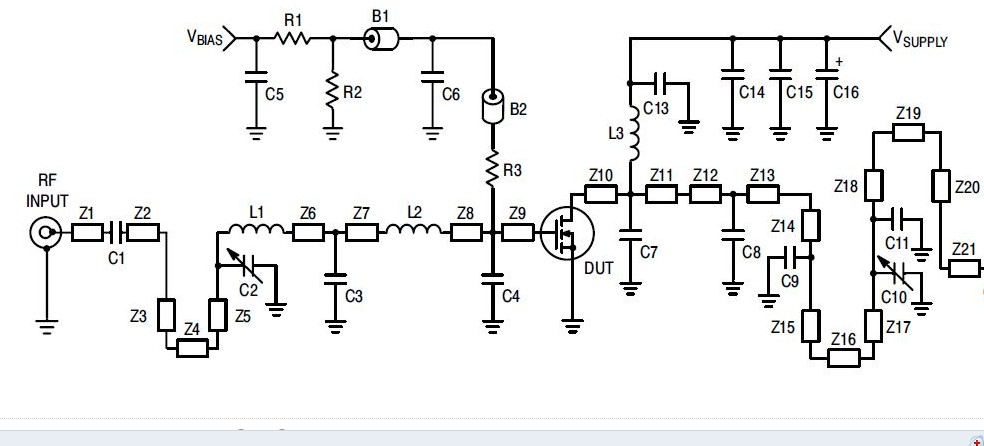

MRF5S19060NB block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

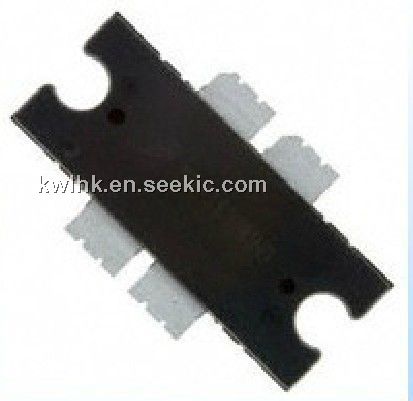

MRF5S19060NBR1
MRF5S19060NBR1
Freescale Semiconductor
Transistors RF MOSFET Power 1990MHZ 60W 28V TO272WB4N
Data Sheet
Negotiable
