Product Summary

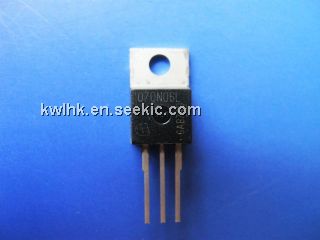

The 070N06L is a 60V OptiMOS Power-Transistor.
Parametrics
070N06L absolute maximum ratings: (1)Continuous drain current: 80A; (2)Pulsed drain current: 320A; (3)Avalanche energy, single pulse: 450 mJ; (4)Reverse diode dv/dt: 6 kV/us; (5)Gate source voltage: ±20 V; (6)Power dissipation: 214 W; (7)Operating and storage temperature: -55 to 175°C.
Features
070N06L features: (1)For fast switching converters and sync. rectification; (2)N-channel enhancement - logic level; (3)175 °C operating temperature; (4)Avalanche rated; (5)Pb-free lead plating, RoHS compliant.

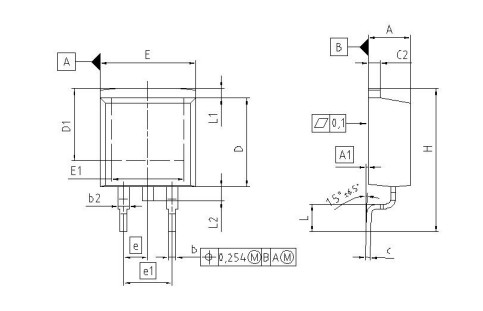

Diagrams
