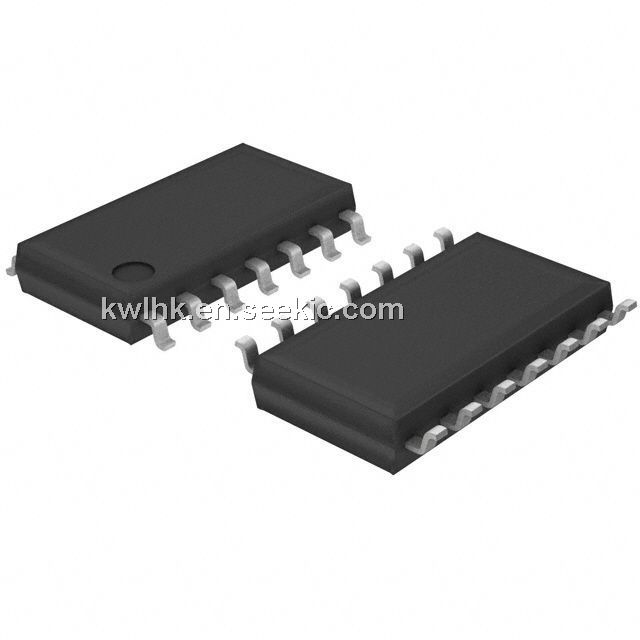

74HC08

74HC08, Quad 2-Input AND Gate, SOP, NEC, 0.5 V, 1.0 μA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.19~0.27 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.27 / Piece
500 ~ 1000 :	0.23 / Piece
1000 ~ 1500 :	0.19 / Piece

PartNumber:: 74HC08

Brand:: NEC - Nec | Pack: SOP | D/C: 00+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-16

From Other Seller

Part Number:74HC08
US $0.19 - 0.27
74HC08

US $0.01 - 6.00 / Piece
(0) Remove
AND Gate 4-Element 2-IN CMOS 14-Pin SO Bulk

US $0.13 - 0.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

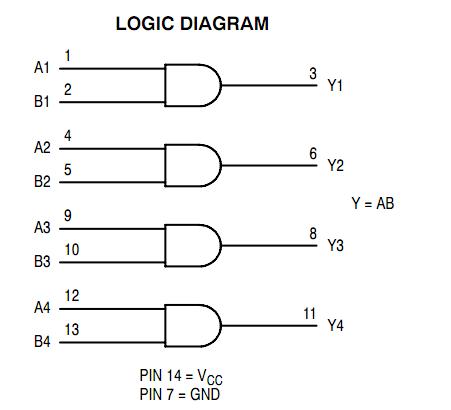

The 74HC08 is a Quad 2-Input AND Gate. The 74HC08 is identical in pinout to the LS08. The 74HC08 inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

Parametrics

74HC08 absolute maximum ratings: (1)VCC, DC Supply Voltage (Referenced to GND): – 0.5 to + 7.0 V; (2)Vin, DC Input Voltage (Referenced to GND): – 0.5 to VCC + 0.5 V; (3)Vout, DC Output Voltage (Referenced to GND): – 0.5 to VCC + 0.5 V; (4)Iin, DC Input Current, per Pin: ±20 mA; (5)Iout, DC Output Current, per Pin :±25 mA; (6)ICC, DC Supply Current, VCC and GND Pins: ±50 mA; (7)PD, Power Dissipation in Still Air: 500 mW; (8)Tstg, Storage Temperature: – 65 to + 150℃; (9)TL, Lead Temperature: 260℃.

Features

74HC08 features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1.0 μA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With the JEDEC Standard No. 7A Requirements; (7)ESD Performance: HBM 2000 V; Machine Model > 200 V; (8)Chip Complexity: 24 FETs or 6 Equivalent Gates; (9)These are Pb-Free Devices.
