Product Summary

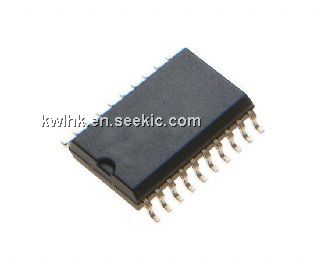

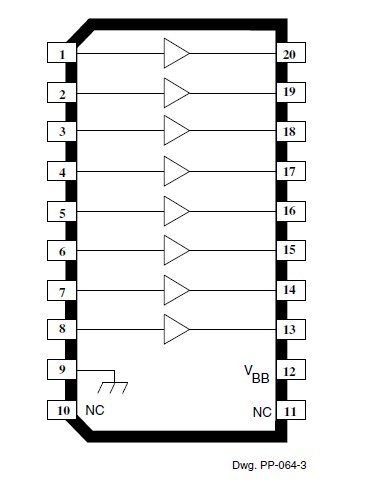

The A6118SLW is a vacuum fluorescent display driver. Consisting of eight npn Darlington output stages and the associated common-emitter input stages, the A6118SLW is designed to interface between low-level digital logic and vacuum fluorescent displays. The A6118SLW is capable of driving the digits and/or segments of these displays and are designed to permit all outputs to be activated simultaneously. Pull-down resistors are incorporated into each output and no external components are required for most fluorescent display applications. With any device, the output load is activated when the input is pulled towards the positive supply (active high). The A6118SLW is furnished in a standard 18-pin plastic DIP; the A6118SLW is in a 20- lead wide-body SOIC.
Parametrics
A6118SLW absolute maximum ratings: (1)Supply Voltage, VBB: 85 V; (2)Input Voltage, VIN: 20 V; (3)Output Current, IOUT: -40 mA; (4)Operating Temperature Range, TA: -20°C to +85°C; (5)Storage Temperature Range, TS: -55°C to +150°C.
Features
A6118SLW features: (1)Digit or Segment Drivers; (2)Low Input Current; (3)Integral Output Pull-Down Resistors; (4)High Output Breakdown Voltage; (5)Single or Split Supply Operation; (6)Automotive Capable.
