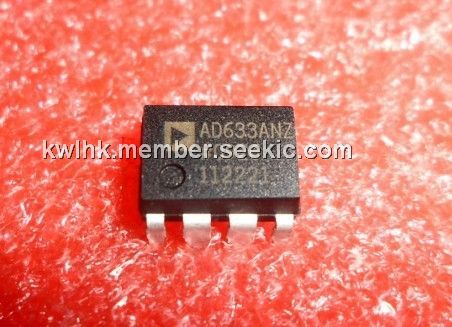

AD633ANZ

AD633ANZ, functionally complete, four-quadrant, analog multiplier, DIP, 18V, 500mW, 1000V, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~15.00

PartNumber:: AD633ANZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-12

From Other Seller

Part Number:AD633ANZ
US $0.10 - 15.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

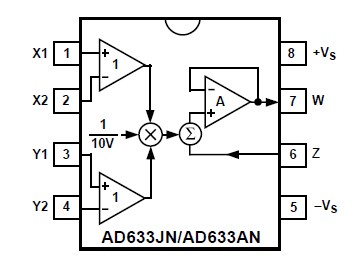

The AD633ANZ is a functionally complete, four-quadrant, analog multiplier. It includes high impedance, differential X and Y inputs and a high impedance summing input (Z). The low impedance output voltage is a nominal 10 V full scale provided by a buried Zener. The AD633ANZ is laser calibrated to a guaranteed total accuracy of 2% of full scale. The applications of the AD633ANZ are Multiplication, Division, Squaring, Modulation/Demodulation, Phase Detection, Voltage-Controlled Amplifiers/Attenuators/Filters.

Parametrics

AD633ANZ absolute maximum ratings: (1)Supply Voltage:±18 V; (2)Internal Power Dissipation:500 mW; (3)Input Voltages: ±18 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range:–65℃ to +150℃; (6)Operating Temperature Range:0℃ to +70℃; (7)Lead Temperature Range (Soldering 60 sec): +300℃; (8)ESD Rating:1000 V.

Features

AD633ANZ features: (1)Four-Quadrant Multiplication; (2)Low Cost 8-Lead Package; (3)Complete-No External Components Required; (4)Laser-Trimmed Accuracy and Stability; (5)Total Error Within 2% of FS; (6)Differential High Impedance X and Y Inputs; (7)High Impedance Unity-Gain Summing Input; (8)Laser-Trimmed 10 V Scaling Reference.
