Product Summary
The AD9057BRS-60 is an 8-bit monolithic analog-to-digital converter optimized for low cost, low power, small size, and ease of use. With a 40 MSPS, 60 MSPS or 80 MSPS encode rates capability and full-power analog bandwidth of 120 MHz, the AD9057BRS-60 is ideal for applications requiring excellent dynamic performance. To minimize system cost and power dissipation, the AD9057BRS-60 includes an internal +2.5 V reference and a track-and-hold circuit. The user must provide only a +5 V power supply and an encode clock. No external reference or driver components are required for many applications. Applications are (1)Digital Communications (QAM Demodulators); (2)RGB & YC/Composite Video Processing; (3)Digital Data Storage Read Channels; (4)Medical Imaging; (5)Digital Instrumentation.
Parametrics
AD9057BRS-60 absolute maximum ratings: (1)VD, VDD: +7 V; (2)Analog Inputs: -0.5 V to VD + 0.5 V; (3)Digital Inputs: -0.5 V to VDD + 0.5 V; (4)VREF Input: -0.5 V to VD + 0.5 V; (5)Digital Output Current: 20 mA; (6)Operating Temperature: -55°C to +125°C; (7)Storage Temperature: -65°C to +150°C; (8)Maximum Junction Temperature: +175°C; (9)Maximum Case Temperature: +150°C.
Features
AD9057BRS-60 features: (1)8-Bit, Low Power ADC: 200 mW Typical; (2)120 MHz Analog Bandwidth; (3)On-Chip +2.5 V Reference and T/H; (4)1 V p-p Analog Input Range; (5)Single +5 V Supply Operation; (6)+5 V or +3 V Logic Interface; (7)Power-Down Mode: < 10 mW; (8)Three Performance Grades (40 MSPS, 60 MSPS, 80 MSPS).
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |

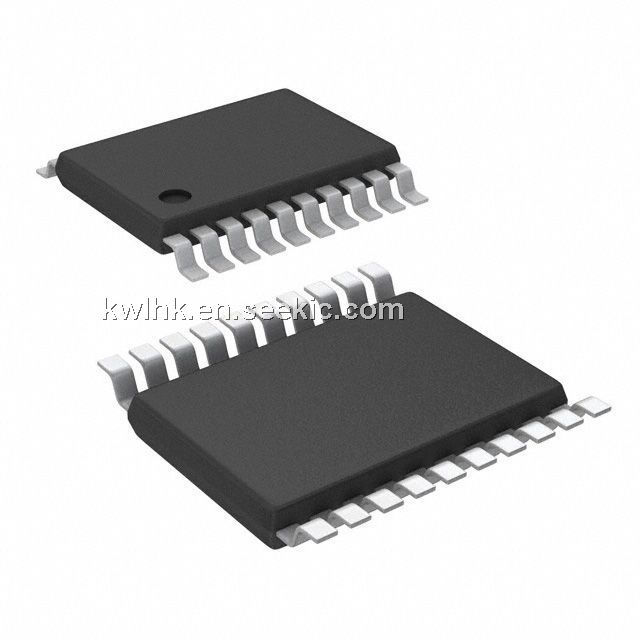

![]() AD9057BRS-60 |
![]() |
