Product Summary
The ADSP-2187LKST-210 is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications. The ADSP-2187LKST-210 combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16 -bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities and on-chip program and data memory. In addition, the ADSP-2187LKST-210 supports new instructions, which include bit manipulations—bit set, bit clear, bit toggle, bit test— new ALU constants, new multiplication instruction (x squared), biased rounding, result free ALU operations, I/O memory transfers and global interrupt masking, for increased flexibility.
Parametrics
ADSP-2187LKST-210 absolute maximum ratings: (1)Supply Voltage: -0.3 V to +4.6 V; (2)Input Voltage: -0.5 V to VDD + 0.5 V; (3)Output Voltage Swing: -0.5 V to VDD + 0.5 V; (4)Operating Temperature Range (Ambient): -40° C to +85°C; (5)Storage Temperature Range: -65°C to +150°C; (6)Lead Temperature (5 sec)TQFP: +280°C.
Features
ADSP-2187LKST-210 features: (1)19 ns Instruction Cycle Time @ 3.3 Volts, 52 MIPS Sustained Performance; (2)Single-Cycle Instruction Execution; (3)Single-Cycle Context Switch; (4)3-Bus Architecture Allows Dual Operand Fetches in Every Instruction Cycle; (5)Power-Down Mode Featuring Low CMOS Standby; (6)Power Dissipation with 400 Cycle Recovery from; (7)Power-Down Condition; (8)Low Power Dissipation in Idle Mode.

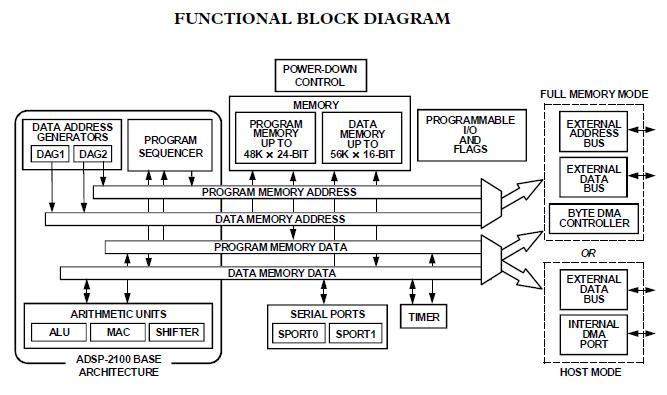

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() ADSP-2187LKST-210 |
![]() Analog Devices Inc |
![]() IC DSP CONTROLLER 16BIT 100TQFP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||
