Product Summary

The AH201 is a medium power, high linearity amplifier. This device can be biased as low as +9V for lower power applications and as high as +12V for improved P1dB and OIP3 performance. The product is targeted for use as driver amplifiers for wireless infrastructure where high linearity and medium power is required.

Parametrics

AH201 absolute maximum ratings: (1)Operating Case Temperature: -40 to +85 °C; (2)Storage Temperature: -40 to +125 °C; (3)DC Voltage: +15 V; (4)RF Input Power (continuous): +20 dBm; (5)Junction Temperature: +155° C; (6)Operating Current Range mA: 310 to 370 mA.

Features

AH201 features: (1)400 to 2200 MHz; (2)+30 dBm P1dB; (3)+47 dBm Output IP3; (4)17 dB Gain @ 900 MHz; (5)MTBF >100 Years; (6)Single Positive Supply (9-12V); (7)Internally Matched; (8)24dBm IS-95 Channel Power @ -45dBc ACPR.

Diagrams

AH201 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AH201
AH201
Other

Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AH201
AH201
Other

Data Sheet
Negotiable
AH202
AH202
Other

Data Sheet
Negotiable
AH202F
AH202F
Other

Data Sheet
Negotiable
AH202-F
AH202-F
TriQuint Semiconductor
RF Amplifier 50-2200MHz 17dB Gain@900MHz
Data Sheet
0-1: $12.54
1-25: $9.71
25-100: $7.52
100-250: $7.15
250-500: $6.79

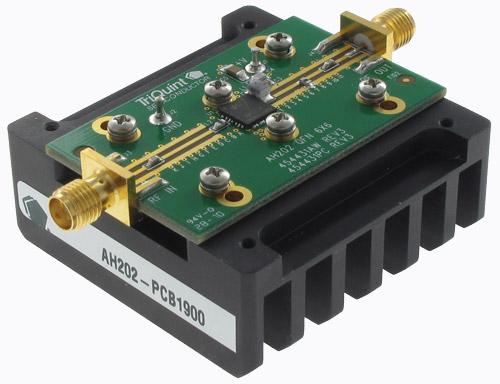

AH202-PCB1900
AH202-PCB1900
TriQuint Semiconductor
RF Development Tools 1900 MHz Eval Brd 15dB Gain
Data Sheet
0-1: $120.00
AH202-PCB2140
AH202-PCB2140
TriQuint Semiconductor
RF Development Tools 2140 MHz Eval Brd 15dB Gain
Data Sheet
0-1: $120.00
