Product Summary
The AM29F100T-90EC is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes or 65,536 words. The AM29F100T-90EC is offered in 44-pin SO and 48-pin TSOP packages. Word-wide data appears on DQ0-DQ15; byte-wide data on DQ0-DQ7. The device is designed to be programmed in-system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29F100T-90EC can also be programmed or erased in standard EPROM programmers.
Parametrics
AM29F100T-90EC absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65°C to +125°C; (2)Ambient Temperature with Power Applied: –55°C to +125°C; (3)Voltage with Respect to Ground VCC (Note 1): –2.0 V to +7.0 V; (4)Voltage with Respect to Ground A9 (Note 2): –2.0 V to +13.5 V; (5)Voltage with Respect to Ground All other pins (Note 1): –2.0 V to +7.0 V; (6)Output Short Circuit Current (Note 3): 200 mA.
Features
AM29F100T-90EC features: (1)Single power supply operation5.0 V ± 10% for read, erase, and program operations — Simplifies system-level power requirements; (2)High performance: 70 ns maximum access time; (3)Low power consumption: 20 mA typical active read current for byte mode; 28 mA typical active read current for word mode; 30 mA typical program/erase current; 25 mA typical standby current; (4)Flexible sector architecture;One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and one 64 Kbyte sectors (byte mode); One 8 Kword, two 4 Kword, one 16 Kword, and one 32 Kword sectors (word mode); Any combinatioof sectors cabe erased; Supports full chip erase.

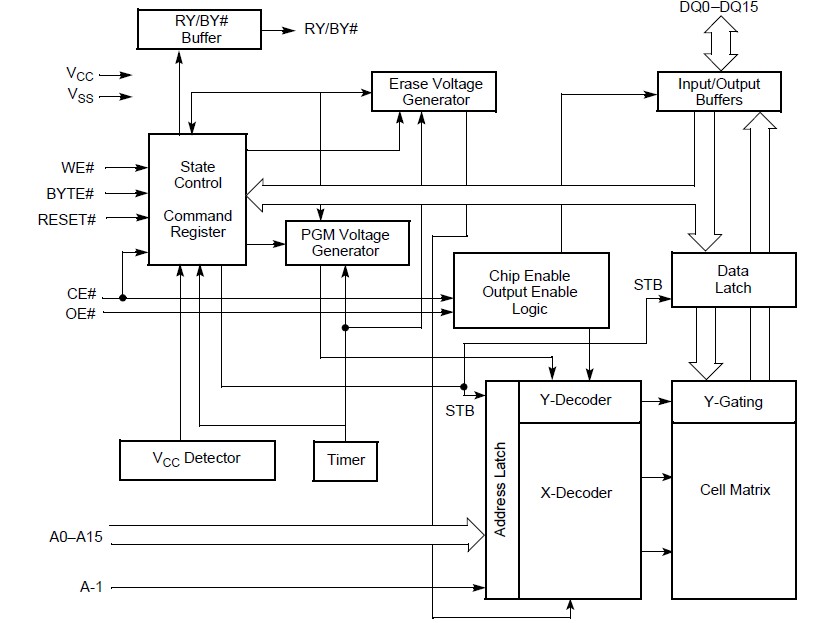

Diagrams
