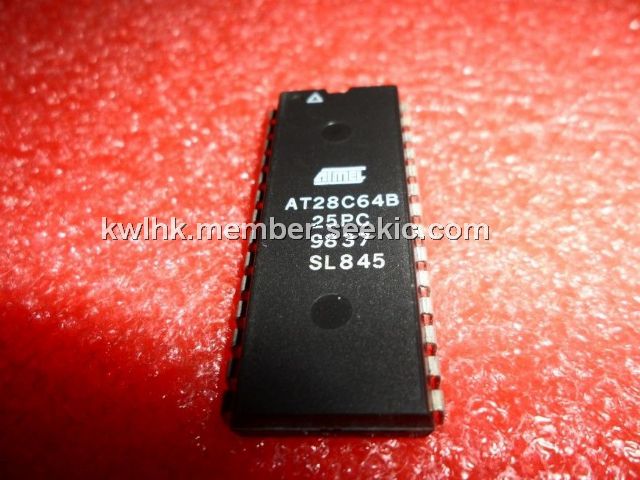

AT28C64B-25PC

64K (8K x 8) Parallel EEPROM, DIP, AT28C64B-25PC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~30.00

PartNumber:: AT28C64B-25PC

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:AT28C64B-25PC
US $0.01 - 30.00
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT28C64B-25PC is a high-performance electrically-erasable and programmable read only memory (EEPROM). Its 64K of memory is organized as 8,192 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT28C64B-25PC offers access times to 150 ns with power dissipation of just 220 mW. When the AT28C64B-25PC is deselected, the CMOS standby current is less than 100 uA.

Parametrics

AT28C64B-25PC absolute maximum ratings: (1)Storage Temperature: -65 to +150℃; (2)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (3)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (4)Voltage on OE and A9 with Respect to Ground:-0.6V to +13.5V; (5)Temperature Under Bias -55 to +125℃.

Features

AT28C64B-25PC features: (1)Fast Read Access Time 150 ns; (2)Automatic Page Write Operation; (3)Internal Address and Data Latches for 64 Bytes; (4)Fast Write Cycle Times; (5)Page Write Cycle Time: 10 ms Maximum; (6)1 to 64-byte Page Write Operation; (7)Low Power Dissipation; (8)40 mA Active Current; (9)100 uA CMOS Standby Current; (10)Hardware and Software Data Protection; (11)DATA Polling and Toggle Bit for End of Write Detection; (12)High Reliability CMOS Technology; (13)Endurance: 100,000 Cycles; (14)Data Retention: 10 Years; (15)Single 5V ±10% Supply; (16)CMOS and TTL Compatible Inputs and Outputs; (17)JEDEC Approved Byte-wide Pinout; (18)Commercial and Industrial Temperature Ranges.
