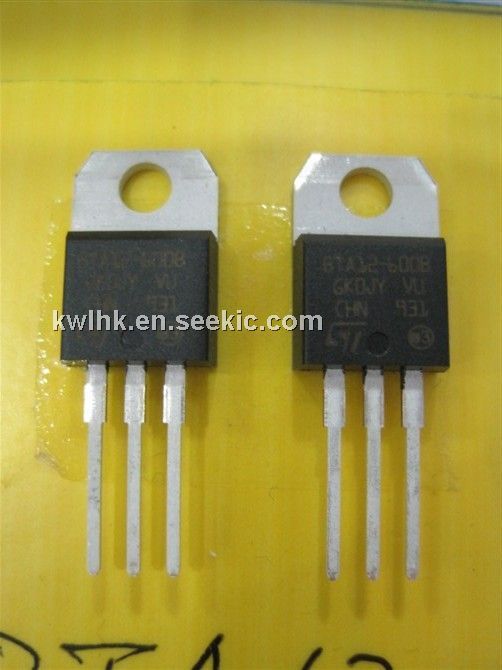

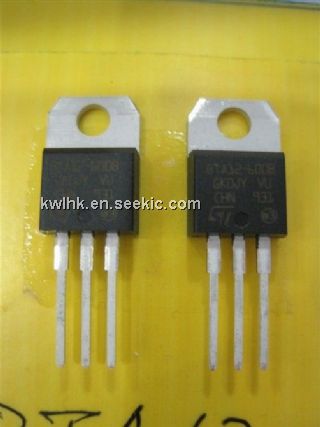

Product Summary

The bta12-600b is a 12A triac. The bta12-600b is suitable for general purpose AC switching. The bta12-600b is available either in through-hole or surface-mount packages. Applications of the bta12-600b include: static relays, heating regulation, induction motor starting circuits, light dimmers and motor speed controllers.

Parametrics

bta12-600b absolute maximum ratings: (1) Repetitive peak off-state voltages VDRM: 600V; (2) peak off-state reverse voltages VRRM: 600V; (3) RMS on-state current IT: 12A; (4) Non-repetitive peak on-state current ITSM: 120A; (5) Max. Operating Junction Temperature Tj: 110°C; (6) Storage Temperature Tstg: -45 to 150°C.

Features

bta12-600b electrical characteristics (1) IGT: 50mA (VD=12V, RL=30Ω) ; (2) VGT: 1.3V (VD=12V, RL=30Ω) ; (3) VGD: 0.2V (VDRM, RL=3.3kΩ, Tj=125°C) ; (4) IH: 50mA (IT=100mA) ; (5) IL: 70mA (IG=1.2IGT) ; (6) dV/dt : 1000V/μs (VD=67% VDRM gate open, Tj=125°C) ; (7) (dl/dt) c: 6.5A/ms (dV/dt) c=0.1V/μs, Tj=125°C, 2.9A/ms (dV/dt) =10V/μs, Tj=125°C.

Diagrams

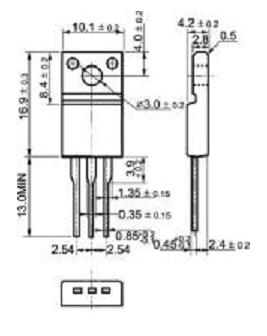

bta12-600b dimension
