Product Summary

The BTS244Z is a N-Channel Enhancement mode Logic Level Input Potential-free temperature sensor with thyristor characteristics.

Parametrics

BTS244Z absolute maximum ratings: (1)Drain source voltage VDS: 55 V; (2)Drain-gate voltage, RGS = 20 kΩ VDGR: 55V; (3)Gate source voltage VGS: ±20V; (4)Continuous drain current: ID 35A; (5)Pulsed drain current ID puls: 188A; (6)Avalanche energy, single pulse EAS: 1.65 J; (7)Power dissipation: Ptot 170 W; (8)Operating temperature Tj: -40 to +175 ℃; (9)Peak temperature ( single event ) Tjpeak: 200℃; (10)Storage temperature Tstg: -55 to +150℃.

Features

BTS244Z features: (1)N-Channel; (2)Enhancement mode; (3)Logic Level Input; (4)Analog driving possible; (5)Fast switching up to 1 MHz; (6)Potential-free temperature sensor with; (7)thyristor characteristics; (8)Overtemperature protection; (9)Green Product (RoHS Compliant); (10)Avalanche rated; (11)AEC Qualified.

Diagrams

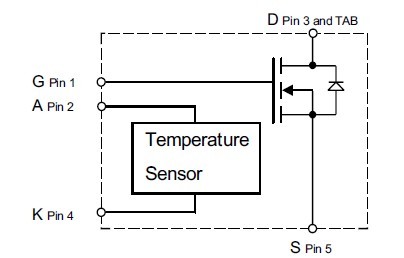

BTS244Z diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BTS244Z
BTS244Z

Infineon Technologies

Power Switch ICs - POE / LAN TEMPFET

Data Sheet

0-245: $1.48
245-250: $1.33
250-500: $1.19
500-1000: $1.01
BTS244Z E3043
BTS244Z E3043

Infineon Technologies

Power Switch ICs - POE / LAN TEMPFET

Data Sheet

0-245: $1.48
245-250: $1.33
250-500: $1.19
500-1000: $1.01
BTS244ZXK
BTS244ZXK

Infineon Technologies

Power Switch ICs - POE / LAN SPEED TEMPFET N-CH 55V

Data Sheet

0-250: $1.28
250-500: $1.04
500-1000: $0.88
1000-2000: $0.83
BTS244ZE3043XK
BTS244ZE3043XK

Infineon Technologies

Power Switch ICs - POE / LAN SPEED TEMPFET N-CH 55V

Data Sheet

0-250: $1.28
250-500: $1.04
500-1000: $0.88
1000-2000: $0.83
BTS244Z E3062A
BTS244Z E3062A

Infineon Technologies

Power Switch ICs - POE / LAN N-Channel 55V SPEED TEMPFET

Data Sheet

0-610: $1.04
610-1000: $0.88
1000-2000: $0.82
2000-5000: $0.80
BTS244ZE3062ANT
BTS244ZE3062ANT

Infineon Technologies

Power Switch ICs - POE / LAN SPEED TEMPFET N-CH 55V

Data Sheet

0-490: $1.48
490-500: $1.19
500-1000: $1.01
1000-2000: $0.95
