Product Summary

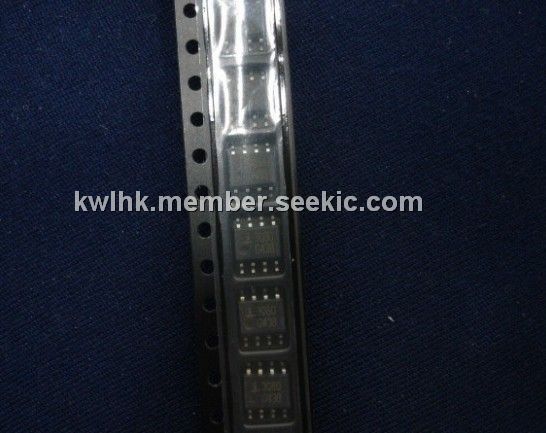

The CA3080AM is a 2MHz, Operational Transconductance Amplifier. It utilizes the unique operational-transconductanceamplifier (OTA) concept described in Application Note AN6668. It has differential input and a single-ended, push-pull, class A output. In addition, the device has an amplifier bias input which may be used either for gating or for linear gain control. The applications of the CA3080AM include: Sample and Hold, Multiplier, Multiplexer, Comparator, Voltage Follower.
Parametrics
CA3080AM maximum ratings:(1)Supply Voltage (Between V+ and V- Terminal): 36V; (2)Differential Input Voltage: 5V; (3)Input Voltage: V+ to V-; (4)Input Signal Current: 1mA; (5)Amplifier Bias Current (IABC): 2mA; (6)Output Short Circuit Duration (Note 1): No Limitation.
Features
CA3080AM features: (1)Slew Rate (Unity Gain, Compensated): 50V/μS; (2)Adjustable Power Consumption: 10 μw to 30μw; (3)Flexible Supply Voltage Range: ±2V to ±15V; (4)Fully Adjustable Gain: 0 to gMRL Limit; (5)Tight gM Spread: CA3080 is 1.6:1; CA3080A is 1.6:1; (6)Extended gM Linearity: 3 Decades.
Diagrams
 |
