Product Summary

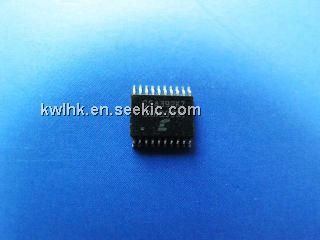

The CS4392KZ is a 24-Bit, 192 kHz Stereo DAC. The CS4392KZ accepts PCM data at sample rates from 4 kHz to 192 kHz, DSD audio data, has selectable digital filters, and consumes very little power. These features are ideal for DVD, SACD players, A/V receivers, CD and set-top box systems. The CS4392KZ is pin and register compatible with the CS4391, making easy performance upgrades possible.

Parametrics

CS4392KZ absolute maximum ratings: (1)DC Power Supply: VA:-0.3 to 6.0V, VL: -0.3 to VA; (2)Input Current, Any Pin Except Supplies: Iin: ±10 mA; (3)Digital Input Voltage: VIND: -0.3 to VL+0.4 V; (4)Ambient Operating Temperature (power applied): TA: -55 to 125 °C; (5)Storage Temperature: Tstg: -65 to 150 °C.

Features

CS4392KZ features: (1)Complete Stereo DAC System: Interpolation,; (2)D/A, Output Analog Filtering; (3)114 dB Dynamic Range; (4)100 dB THD+N; (5)Up to 192kHz Sample Rates; (6)Direct Stream Digital Mode; (7)Low Clock Jitter Sensitivity; (8)Single +5 V Power Supply; (9)Selectable Digital Filters– Fast and Slow roll-off; (10)Volume Control with Soft Ramp: 1 dB Step Size, Zero Crossing Click-Free Transitions; (11)Direct Interface with 5 V to 1.8 V Logic; (12)ATAPI mixing functions; (13)Pin compatible with the CS4391.

Diagrams

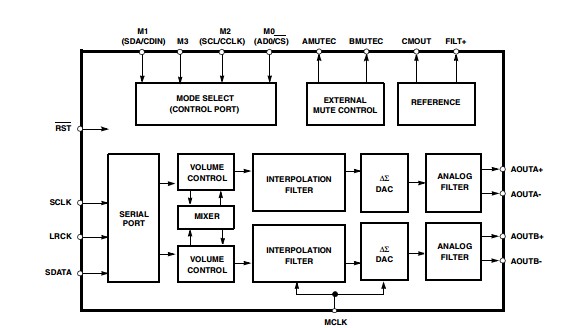

CS4392KZ block diagram
