Product Summary
The D101V6516-60 is a Miniature, 1W SIP Ultra-High Isolation DC/DC Converter.
Parametrics
D101V6516-60 absolute maximum ratings: (1)Input Voltage Range: 4.5 to 5.5 VDC; (2)Input Filter: 10.8 to 13.2 VDC; (3)Reverse Polarity Input Current: Internal Capacitor; (4)Reverse Polarity Input Current: 0.3 A; (5)Output Voltage Accuracy: ±1.0 to ±3.0 %; (6)Output Voltage Balance: ±0.1 to ±1.0 %; (7)Line Regulation: ±1.2 to ±1.5 %; (8)Isolation Voltage: 6,000 VDC; (9)Isolation Test Voltage: 6,600 VDC; (10)Isolation Resistance: 10 GΩ; (11)Isolation Capacitance: 15 to 20 pF; (12)Switching Frequency: 50 to 100 kHz.
Features
D101V6516-60 features: (1)1W Output Power; (2)6.0 kVDC Isolation; (3)Miniature SIP Case; (4)Single & Dual Outputs; (5)Miniature SIP Case; (6)12 Standard Models; (7)2.0 MH MTBF; (8)Industry Standard Pin-Out.

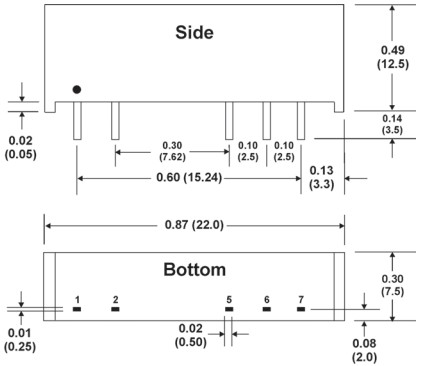

Diagrams
