Product Summary

The FDD6670A is a N-Channel Logic level MOSFET.The FDD6670A is produced using Fairchild Semiconductor advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance. Applications are (1)DC/DC converter; (2)Motor drives.

Parametrics

FDD6670A absolute maximum ratings: (1)Drain-Source Voltage: 30 V; (2)Gate-Source Voltage: ±20 V; (3)Maximum Drain Current -Continuous: 66 A; (4)Maximum Drain Current -Pulsed: 100 A; (5)Maximum Power Dissipation: 70 W; (6)Operating and Storage Junction Temperature Range: -55 to +150 °C.

Features

FDD6670A features: (1)Low gate charge (35nC typical).; (2)Fast switching speed.; (3)High performance trench technology for extremely low RDS(on).

Diagrams

FDD6670A pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

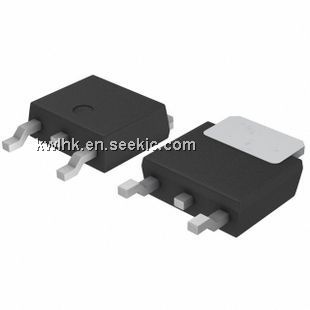

FDD6670A
FDD6670A
Fairchild Semiconductor
MOSFET 30V N-Ch PowerTrench Logic Level
Data Sheet
0-1: $0.68
1-25: $0.60
25-100: $0.51
100-250: $0.41
FDD6670A_Q
FDD6670A_Q
Fairchild Semiconductor
MOSFET 30V N-Ch PowerTrench Logic Level
Data Sheet
0-1: $0.38
1-25: $0.37
25-100: $0.36
100-250: $0.36
FDD6670AL
FDD6670AL
Fairchild Semiconductor
MOSFET 30V N-Ch PowerTrench
Data Sheet
Negotiable
FDD6670AS
FDD6670AS
Fairchild Semiconductor
MOSFET 30V N-Channel PowerTrench SyncFET
Data Sheet
Negotiable
