Product Summary

The GE28F320W18TD60 is a wireless flash memory. This device is an ideal memory for low-voltage burst CPUs. Combining high read performance with flash memory’s intrinsic nonvolatility, the W18 device eliminates the traditional system-performance paradigm of shadowing redundant code memory from slow nonvolatile storage to faster execution memory. The GE28F320W18TD60 reduces the total memory requirement that increases reliability and reduces overall system power consumption and cost.

Parametrics

GE28F320W18TD60 absolute maximum ratings: (1)Temperature under Bias: –40 °C to +85 °C; (2)Storage Temperature:–65 °C to +125 °C; (3)Voltage on Any Pin (except VCC, VCCQ, VPP):–0.5 V to +2.45 V; (4)VPP Voltage:–0.2 V to +14 V; (5)VCC and VCCQ Voltage:–0.2 V to +2.45 V; (6)Output Short Circuit Current: 100 mA.

Features

GE28F320W18TD60 features: (1)Burst frequency at 66 MHz; (2)60 ns Initial Access Read Speed; (3)11 ns Burst-Mode Read Speed; (4)20 ns Page-Mode Read Speed; (5)4-, 8-, 16-, and Continuous-Word Burst Mode Reads; (6)Burst and Page Mode Reads in all; (7)Blocks, across all partition boundaries; (8)Burst Suspend Feature; (9)Enhanced Factory Programming at 3.1 μs/word (typ.for 0.13 μm); (10)128-bit Protection Register; (11)64-bits Unique Programmed by Intel; (12)64-bits User-Programmable; (13)Absolute Write Protection with VPP at Ground; (14)Individual and Instantaneous Block; (15)Locking/Unlocking with Lock-Down Capability; (16)Quality and Reliability; (17)5 μs (typ.) Program and Erase Suspend Latency Time; (18)Flash Data Integrator (FDI) and Common Flash Interface (CFI) Compatible; (19)Programmable WAIT Signal Polarity; (20)Multiple 4-Mbit Partitions; (21)Dual Operation: RWW or RWE; (22)8KB parameter blocks; (23)64KB main blocks; (24)Top or Bottom Parameter Devices; (25)16-bit wide data bus.

Diagrams

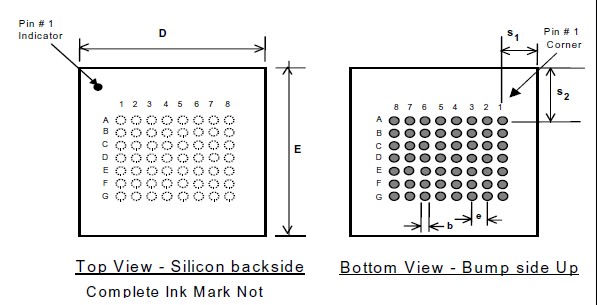

GE28F320W18TD60 dimension figure
