Product Summary
The IDT74FCT162823ATPV is a bit register .The IDT74FCT162823ATPV built using advanced, dual metal CMOS technology. These high-speed, low-power registers with clock enable and clear controls are ideal for parity bus interfacing in high-performance synchronous systems. The control inputs are organized to operate the device as two 9-bit registers or one 18-bit register. Flow-through organization of signal pins simplifies layout. All inputs are designed with hysteresis for improved noise margin.
Parametrics
IDT74FCT162823ATPV absolute maximum ratings: (1)Terminal Voltage with Respect to GND: –0.5 to +7.0 V; (2)Terminal Voltage with Respect to GND: –0.5 to VCC +0.5 V; (3)Storage Temperature: –65 to +150 °C; (4)DC Output Current: –60 to +120 mA.
Features
IDT74FCT162823ATPV features: (1)0.5 MICRON CMOS Technology; (2)High-speed, low-power CMOS replacement for ABT functions; (3)Typical tSK(o)(Output Skew)< 250ps; (4)Low input and output leakage 1mA (max.); (5)ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0); (6)Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack; (7)Extended commercial range of -40°C to +85°C; (8)VCC = 5V ±10%.

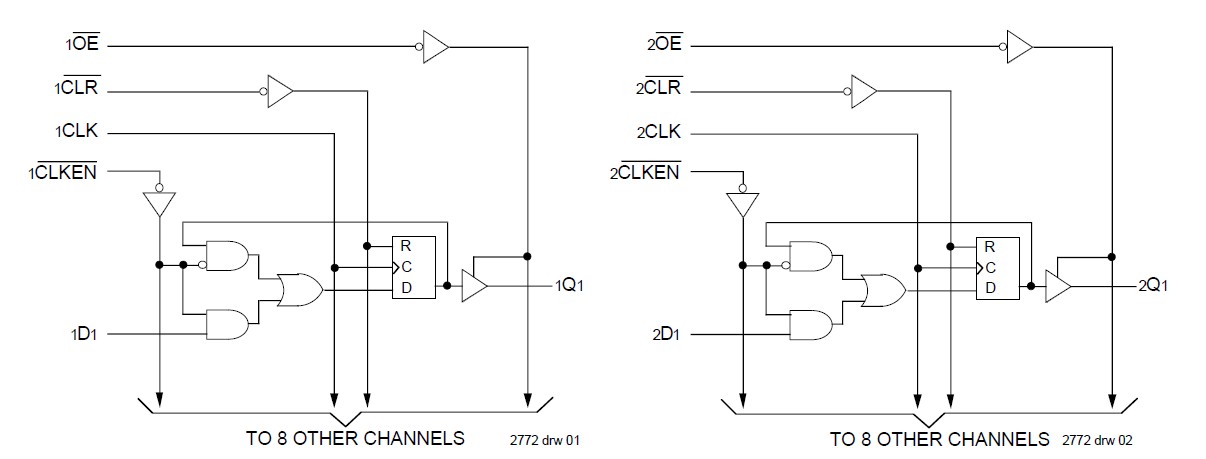

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IDT74FCT162823ATPVG |
|
IC REGISTER 18BIT FAST 56-SSOP |
Data Sheet |
|
|
||||||
|
IDT74FCT162823ATPVG8 |
|
IC REGISTER 18BIT FAST 56-SSOP |
Data Sheet |
|
|
||||||
