IR2113

power MOSFET and IGBT driver, 625V, 1.6W, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.82~0.98 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.98 / Piece
500 ~ 1000 :	0.90 / Piece
1000 ~ 1500 :	0.82 / Piece

PartNumber:: IR2113

Brand:: International Rectifier - IR | Pack: DIP | D/C: 97+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-02

From Other Seller

Part Number:IR2113
US $0.82 - 0.98
IR2113PBF

US $0.50 - 1.00 / Piece
(0) Remove
Quantity:

piece

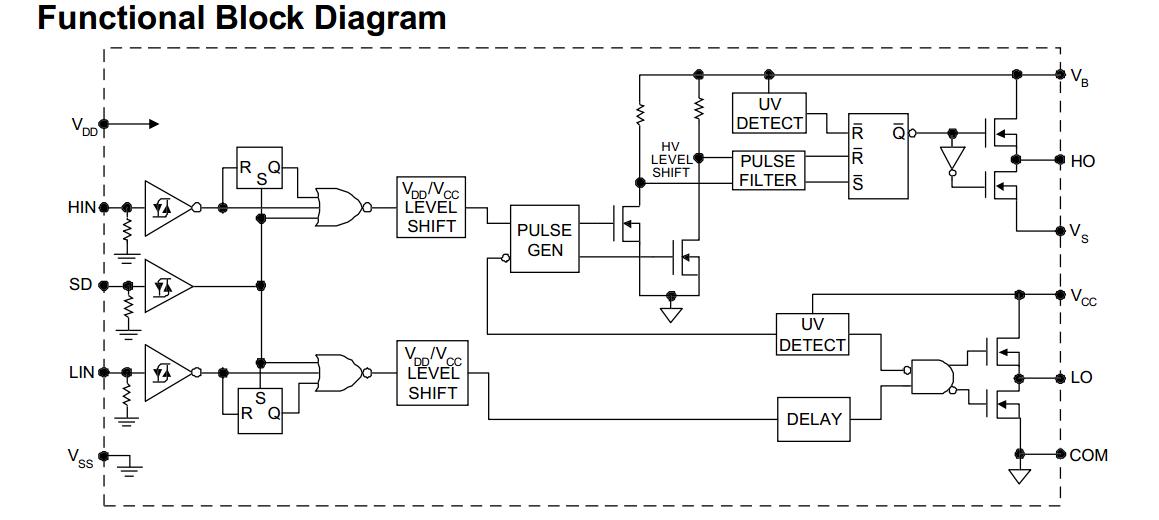

Product Summary

The ir2113 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. The ir2113 features a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel of the ir2113 can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.

Parametrics

ir2113 absolute maximum ratings: (1) High side floating absolute voltage VB: -0.3 to 625V; (2) High side floating supply offset voltage Vs: VB-25 to VB+0.3V; (3) High side floating output voltage VHO: VS-0.3 to VB+0.3V; (4) Low side and logic fixed supply voltage: -0.3 to 25V; (5) Low side output voltage VLO: -0.3 to VCC +0.3V; (6) Allowable Offset Supply Voltage Transient dVs/dt: 50V/ns; (7) Junction Temperature Tj: 150°C; (8) Storage Temperature Ts: -55 to 150°C; (9) Lead Temperature (Soldering, 10 seconds) TL: 300°C.

Features

ir2113 features: (1) Floating channel designed for bootstrap operation, Fully operational to +600V; (2) Tolerant to negative transient voltage dV/dt immune; (3) Gate drive supply range from 10 to 20V; (4) Undervoltage lockout for both channels; (5) Separate logic supply range from 5 to 20V Logic and power ground ±5V offset; (6) CMOS Schmitt-triggered inputs with pull-down; (7) Cycle by cycle edge-triggered shutdown logic; (8) Matched propagation delay for both channels; (9) Outputs in phase with inputs.
