IR2153

IR2153, half-bridge driver, 625V, 25mA, 1W, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.64~2.98 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	2.98 / Piece
500 ~ 1000 :	1.65 / Piece
1000 ~ 1500 :	0.64 / Piece

PartNumber:: IR2153

Brand:: International Rectifier - IR | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-21

From Other Seller

Part Number:IR2153
US $0.64 - 2.98
IR2153PBF

US $0.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

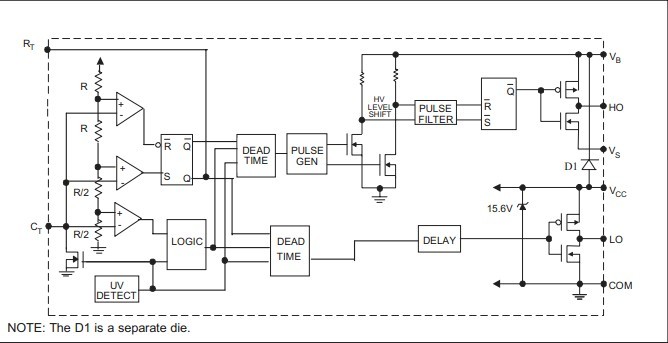

The IR2153 is an oscillating half-bridge driver. A shutdown feature has been designed into the CT pin, so that both gate driver outputs can be disabled using a low voltage control signal. In addition, the gate driver output pulse widths are the same once the rising undervoltage lockout thresholdon VCC has been reached, resulting in a more stable profile of fre quency vs time at startup.Noise immunity has been improved significantly, both by lowering the peak di/dt of the gate drivers, and by increasing the undervoltage lockout hysteresis to 1V. Finally, special attention has been payed to maximizing; the latch immunity of the device, and providing comprehen sive ESD protection on all pins.

Parametrics

IR2153 absolute maximum ratings: (1)high side floating supply voltage: 625V; (2)RT pin voltage: -0.3 to VCC+0.3V; (3)supply current: 25mA; (4)maximum power dissipation: 1W; (5)thermal resistance junction to ambient: 125℃/W; (6)junction temperature: -55 to 150℃.

Features

IR2153 features: (1)Integrated 600V half-bridge gate driver; (2)15.6V zener clamp on Vcc; (3)True micropower start up; (4)Tighter initial deadtime control; (5)Low temperature coefficient deadtime; (6)Shutdown feature (1/6th Vcc) on CTpin; (7)Increased undervoltage lockout Hysteresis (1V); (8)Lower power level-shifting circuit; (9)Constant LO, HO pulse widths at startup; (10)Lower di/dt gate driver for better noise immunity; (11)Low side output in phase with RT; (12)Internal 50nsec (typ.) bootstrap diode (IR2153); (13)Excellent latch immunity on all inputs and outputs; (14)ESD protection on all leads; (15)Also available LEAD-FREE.
