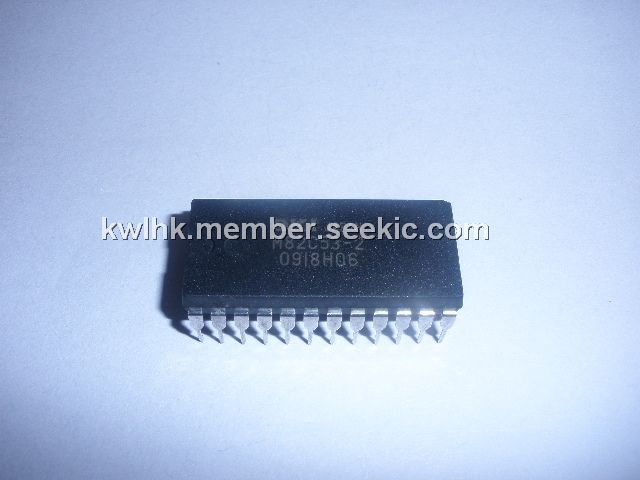

Product Summary
The M82C53-2 is a programmable universal timer designed for use in microcomputer systems. Based on silicon gate CMOS technology, the M82C53-2 requires a standby current of only 100 mA (max.) when the chip is in the nonselected state. During timer operation, power consumption is still very low only 8 mA (max.) at 8 MHz of current required. The M82C53-2 consists of three independent counters, and can count up to a maximum of 8 MHz. The timer M82C53-2 features six different counter modes, and binary count/BCD count functions. Count values can be set in byte or word units, and all functions are freely programmable.
Parametrics
M82C53-2 absolute maximum ratings: (1)Supply Voltage, VCC: –0.5 to + 7 V; (2)Input Voltage, VIN: –0.5 to VCC + 0.5 V; (3)Output Voltage, VOUT: –0.5 to VCC + 0.5 V; (4)Storage Temperature, TSTG: –55 to + 150℃; (5)Power Dissipation, PD: 0.7 W.
Features
M82C53-2 features: (1)Maximum operating frequency of 8 MHz; (2)High speed and low power consumption achieved through silicon gate CMOS technology; (3)Completely static operation; (4)Three independent 16-bit down-counters; (5)3 V to 6 V single power supply; (6)Six counter modes available for each counter; (7)Binary and decimal counting possible.

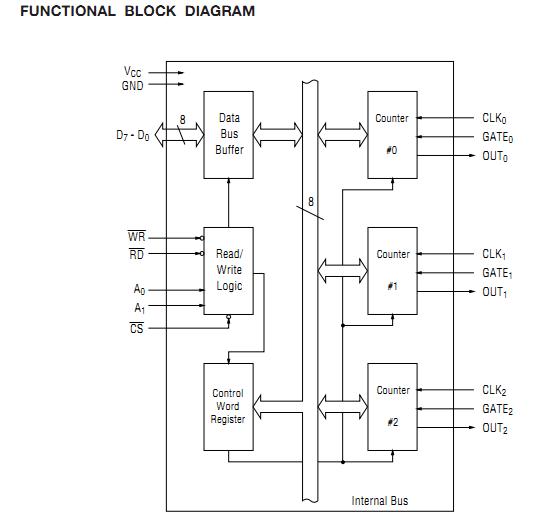

Diagrams
