Product Summary

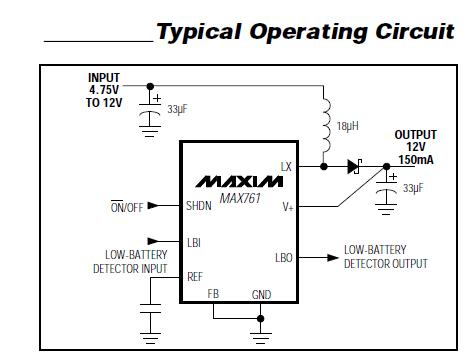

The MAX762CSA is a step-up switching regulator. The device provides high efficiency over a wide range of load currents, delivering up to 150mA. A unique, current-limited pulse-frequency-modulated (PFM) control scheme gives the MAX762CSA the benefits of pulse-width-modulated (PWM) converters (high efficiency with heavy loads), while using less than 110μA of supply current (vs 2mA to 10mA for PWM converters). The result is high efficiency over a wide range of loads. The MAX762CSA input voltage range is 2V to 16.5V. Output voltages are preset to 15V, or the device can be set with two external resistors. With a 5V input, the MAX762CSA guarantees a 12V, 150mA output. Its high efficiency, low supply current, fast start-up time, SHDN controlling capability, and small size make the MAX762CSA ideal for powering flash memory.

Parametrics

MAX762CSA absolute maximum ratings: (1)Supply Voltage V+ to GND: -0.3V to 17V; (2)REF, LBO, LBI, SHDN, FB: -0.3V to (V+ + 0.3V); LX: -0.3V to 17V; LX Peak Current: 1.5A; LBO Current: 5mA; (3)Continuous Power Dissipation (TA = +70℃): 727mW; (4)Operating Temperature Ranges: 0 to +70℃; (5)Junction Temperatures: +150℃; (6)Storage Temperature Range: -65 to +160℃; (7)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX762CSA features: (1)High Efficiency for a Wide Range of Load Currents; (2)12V/150mA Flash Memory Programming Supply; (3)110μA Max Supply Current; (4)5μA Max Shutdown Supply Current; (5)2V to 16.5V Input Voltage Range; (6)12V (MAX761), 15V (MAX762) or Adjustable Output; (7)Current-Limited PFM Control Scheme; (8)300kHz Switching Frequency; (9)Internal, 1A, N-Channel Power FET; (10)LBI/LBO Low-Battery Comparator.
