Product Summary
Th MBR0540PBF is a Schottky diode ideally suited for low voltage, high frequency operation, as freewheeling and polarity protection. Small size of the package allows proper use in application where compact size is critical, fitting also the GSM and PCMCIA requirement.
Parametrics
MBR0540PBF absolute maximum ratings: (1)IF(AV) (DC): 0.5 A; (2)VRRM: 40 V; (3)IFSM @ tp= 10 ms sine: 6.0 A; (4)VF @ 0.5Apk, TJ= 100℃: 0.42 V; (5)TJ range: -65 to 150℃.
Features
MBR0540PBF features: (1)Surface mountable; (2)Very low forward voltage drop; (3)Extremely fast switching; (4)Negligible switching losses; (5)Guard ring for enhanced ruggedness and long term; (6)reliability; (7)Lead-Free ("PbF" suffix).

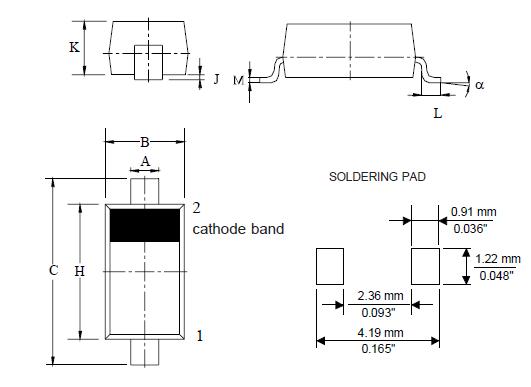

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MBR0540PBF |
![]() Vishay Semiconductors |
![]() Schottky (Diodes & Rectifiers) 0.5 Amp 40 Volt |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
