Product Summary

The MC1458P1 is a dual operational amplifier. The MC1458P1 is designed for use as a summing amplifier, integrator, or amplifier with operating characteristics as a function of the external feedback components.

Parametrics

MC1458P1 absolute maximum ratings: (1)Power Supply Voltage VCC: +18V; VEE: –18Vdc; (2)Input Differential Voltage VID: ±30 V; (3)Input Common Mode Voltage (Note 1) VICM: ±15 V; (4)Output Short Circuit Duration (Note 2) tSC: Continuous; (5)Operating Ambient Temperature Range TA: 0 to +70 ℃; (6)Storage Temperature Range Tstg: –55 to +125 ℃; (7)Junction Temperature TJ: 150 ℃.

Features

MC1458P1 features: (1)No Frequency Compensation Required; (2)Short Circuit Protection; (3)Wide Common Mode and Differential Voltage Ranges; (4)Low Power Consumption; (5)No Latch-up.

Diagrams

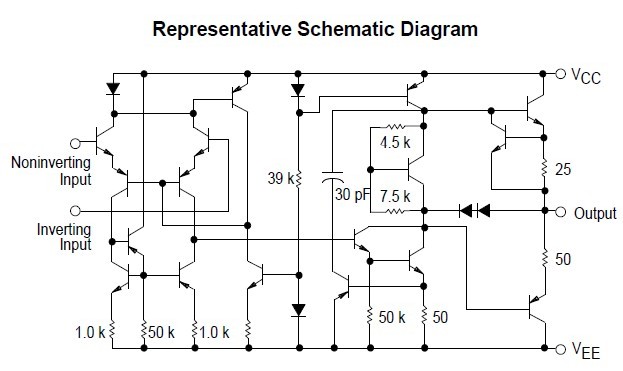

MC1458P1 Representative Schematic Diagram
