MC33077D

MC33077D, operational amplifier, 36 V, 107dB, 200kHz, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.00 / Piece
500 ~ 1000 :	2.00 / Piece
1000 ~ 1500 :	1.00 / Piece

PartNumber:: MC33077D

Brand:: Motorola, Inc - Motorola | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-29

From Other Seller

Part Number:MC33077D
US $1.00 - 3.00
Quantity:

piece

Product Summary

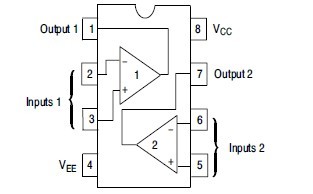

The MC33077D is a precision high quality, high frequency, low noise monolithic dual operational amplifier employing innovative bipolar design techniques. Dual−doublet frequency compensation techniques are used to enhance the gain bandwidth product of the amplifier. The MC33077D output stage exhibits no deadband cross−over distortion, large output voltage swing, excellent phase and gain margins, low open loop output impedance and symmetrical source and sink AC frequency performance. The MC33077D is available in plastic DIP and SOIC−8 packages (P and D suffixes).

Parametrics

MC33077D absolute maximum ratings: (1)Supply Voltage (VCC to VEE)VS: +36 V; (2)Maximum Junction Temperature TJ: +150 °C; (3)Storage Temperature Tstg: −60 to +150 °C; (4)Operating Temperature Range TA: −40 to + 85 °C; (5)Common Mode Rejection (Vin = ±13 V)CMR: 85 to 107dB; (6)Power Bandwidth (VO = 27p−p, RL = 2.0 k, THD 3 1%)BWp: 200kHz.

Features

MC33077D features: (1)Low Voltage Noise: 4.4 nV/Hz @ 1.0 kHz; (2)Low Input Offset Voltage: 0.2 mV; (3)Low TC of Input Offset Voltage: 2.0 V/°C; (4)High Gain Bandwidth Product: 37 MHz @ 100 kHz; (5)High AC Voltage Gain: 370 @ 100 kHz, 1850 @ 20 kHz; (6)Unity Gain Stable: with Capacitance Loads to 500 pF; (7)High Slew Rate: 11 V/s; (8)Low Total Harmonic Distortion: 0.007%; (9)Large Output Voltage Swing: +14 V to −14.7 V; (10)High DC Open Loop Voltage Gain: 400 k (112 dB); (11)High Common Mode Rejection: 107 dB; (12)Low Power Supply Drain Current: 3.5 mA; (13)Dual Supply Operation: ±2.5 V to ±18 V; (14)Pb−Free Package is Available.
