Product Summary

The MC33172D is a low power, single supply operational amplifier. The MC33172D operates at 180 µA per amplifier and offer 1.8 MHz of gain bandwidth product and 2.1 V/µs slew rate without the use of JFET device technology. Although the MC33172D can be operated from split supplies, it is particularly suited for single supply operation, since the common mode input voltage includes ground potential (VEE). With a Darlington input stage, these devices exhibit high input resistance, low input offset voltage and high gain. The all NPN output stage, characterized by no deadband crossover distortion and large output voltage swing, provides high capacitance drive capability, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response.

Parametrics

MC33172D absolute maximum ratings: (1)Supply Voltage VCC/VEE: ±22 V; (2)Input Differential Voltage Range VIDR: (Note 1) V; (3)Input Voltage Range VIR: (Note 1) V; (4)Output Short Circuit Duration (Note 2) tSC: Indefinite sec; (5)Operating Ambient Temperature Range TA: –40 to +85 ℃; (6)Operating Junction Temperature TJ: +150 ℃; (7)Storage Temperature Range Tstg: –65 to +150 ℃.

Features

MC33172D features: (1)Low Supply Current: 180 μA (Per Amplifier); (2)Wide Supply Operating Range: 3.0 V to 44 V or ±1.5 V to ±22 V; (3)Wide Input Common Mode Range, Including Ground (VEE); (4)Wide Bandwidth: 1.8 MHz; (5)High Slew Rate: 2.1 V/μs; (6)Low Input Offset Voltage: 2.0 mV; (7)Large Output Voltage Swing: –14.2 V to +14.2 V (with ±15 V Supplies); (8)Large Capacitance Drive Capability: 0 pF to 500 pF; (9)Low Total Harmonic Distortion: 0.03%; (10)Excellent Phase Margin: 60℃; (11)Excellent Gain Margin: 15 dB; (12)Output Short Circuit Protection; (13)ESD Diodes Provide Input Protection for Dual and Quad.

Diagrams

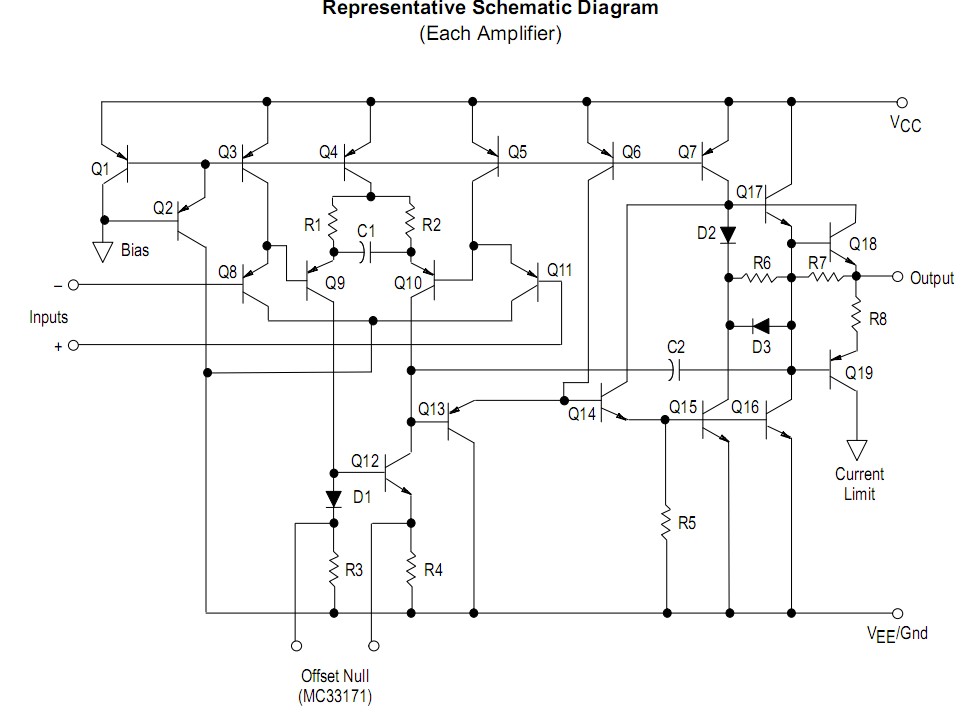

MC33172D schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

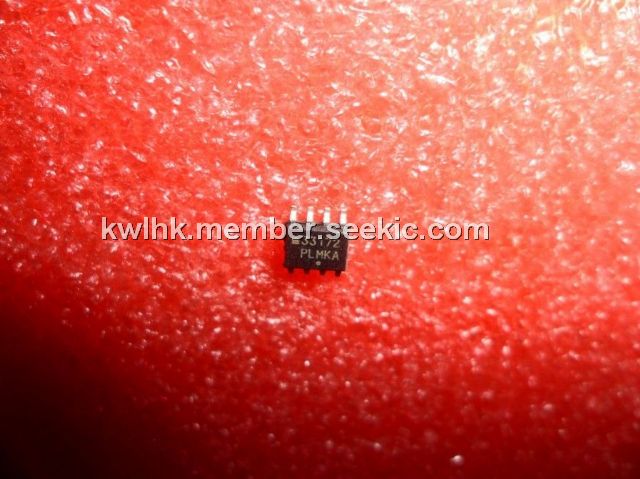

MC33172D
MC33172D

STMicroelectronics

Operational Amplifiers - Op Amps Dual Low Power

Data Sheet

0-1: $0.94
1-10: $0.82
10-100: $0.64
100-250: $0.55
MC33172DG
MC33172DG

ON Semiconductor

Operational Amplifiers - Op Amps 3-44V Dual Low Power Industrial Temp

Data Sheet

0-1: $0.51
1-25: $0.45
25-100: $0.33
100-500: $0.29
MC33172DT
MC33172DT

STMicroelectronics

Operational Amplifiers - Op Amps Dual Low Power

Data Sheet

0-1: $0.48
1-10: $0.43
10-100: $0.33
100-250: $0.28
MC33172DR2G
MC33172DR2G

ON Semiconductor

Operational Amplifiers - Op Amps 3-44V Dual Low Power Industrial Temp

Data Sheet

0-1: $0.65
1-25: $0.52
25-100: $0.45
100-500: $0.35
MC33172DR2
MC33172DR2

ON Semiconductor

Operational Amplifiers - Op Amps 3-44V Dual Low Power

Data Sheet

Negotiable
