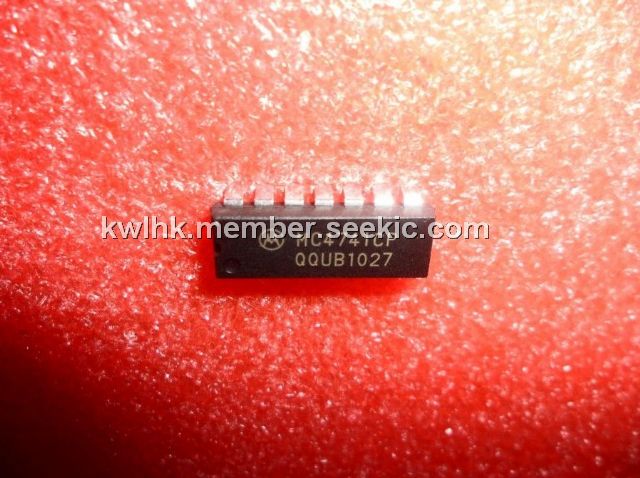

Product Summary

The MC4741CP is a true quad differential input operational amplifier. Integrated on a single monolithic chip are four independent, low power operational amplifiers which have been designed to provide operating characteristics identical to the industry standard. The MC4741CP can be applied with no change in circuit performance.

Parametrics

MC4741CP absolute maximum ratings: (1)Power Supply Voltage VCC: + 18V; (2)VEE: –18V; (3)Input Differential Voltage: ±36 V; (4)Input Common Mode Voltage: ±18 V; (5)Output Short Circuit Duration: Continuous; (6)Operating Ambient Temperature Range: 0 to +70 ℃; (7)Storage Temperature Range: –55 to +125 ℃; (8)Junction Temperature: 150 ℃.

Features

MC4741CP features: (1)Each Amplifier is Functionally Equivalent to the MC1741; (2)Class AB Output Stage Eliminates Crossover Distortion; (3)True Differential Inputs; (4)Internally Frequency Compensated; (5)Short Circuit Protection; (6)Low Power Supply Current (0.6 mA/Amplifier).

Diagrams

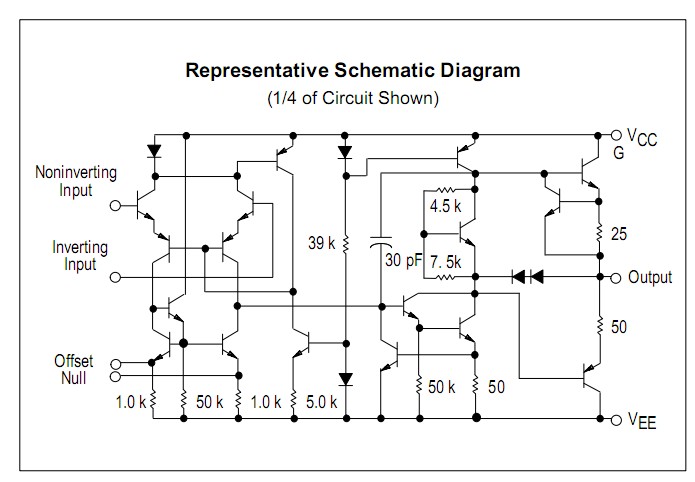

MC4741CP schmatic diagram
