Product Summary
The ML6427CS is a quad 4th-order butterworth lowpass reconstruction filter plus quad video amplifier optimized for minimum overshoot and flat group delay. Each filter channel has a two-input multiplexer that switches between two groups of quad video signals. Applications driving SCART and EVC cables are supported for composite, component, and RGB video.
Parametrics
ML6427CS absolute maximum ratings: (1)VCC: 6V; (2)Junction Temperature: 150°C; (3)ESD: >2000V; (4)Storage Temperature Range: –65°C to 150°C; (5)Lead Temperature (Soldering, 10 sec): 260°C; (6)Thermal Resistance (qJA): 80°C/W.
Features
ML6427CS features: (1)Cable drivers for Peritel (SCART), Enhanced Video Connector (EVC), and standard video connectors, 75W cable drivers for CV, S-video, and RGB; (2)7.1MHz CV, RGB, and S-video, NTSC or PAL filters with mux inputs and output channel mux; (3)Quad reconstructiofilter or dual anti-aliasing filter; (4)43dB stopband attenuatioat 27MHz; (5)1dB flatness up to 4.8MHz; (6)12ns group delay flatness up to 10MHz; (7)0.4% differential gain, 0.4º differential phase oall channels.

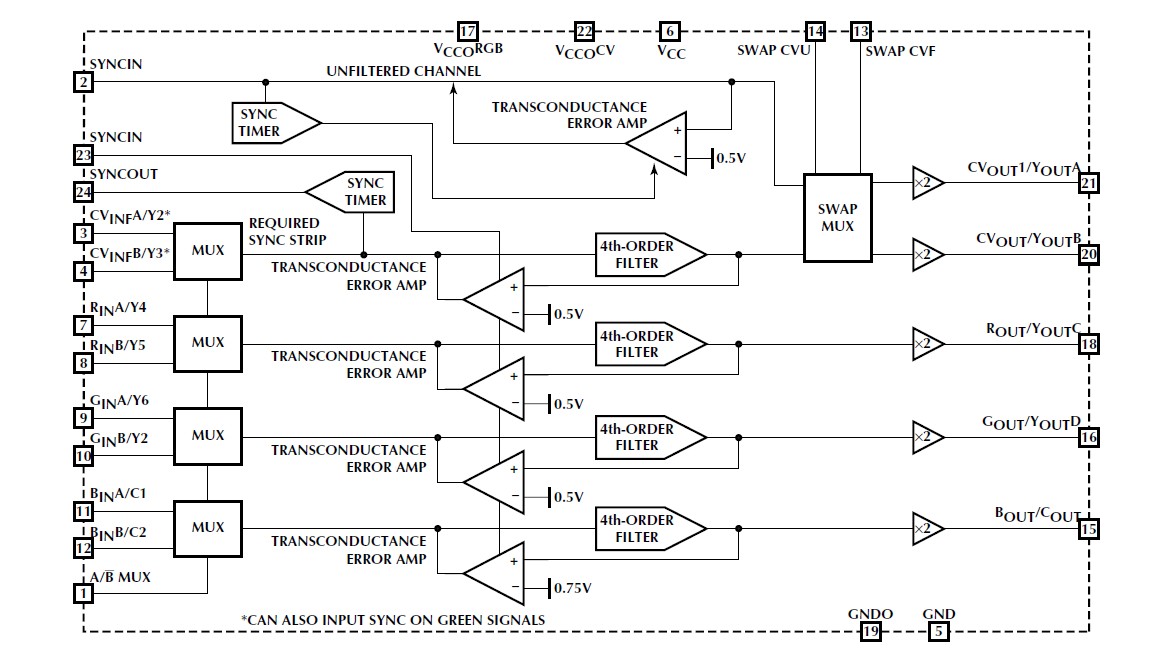

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ML6427CS |
Fairchild Semiconductor |
Video ICs Cable Driver/Filter 75Ohm Quad Video |
Data Sheet |
Negotiable |
|
||||
|
ML6427CSX |
Fairchild Semiconductor |
Video ICs Cable Driver/Filter 75Ohm Quad Video |
Data Sheet |
Negotiable |
|
||||
