Product Summary

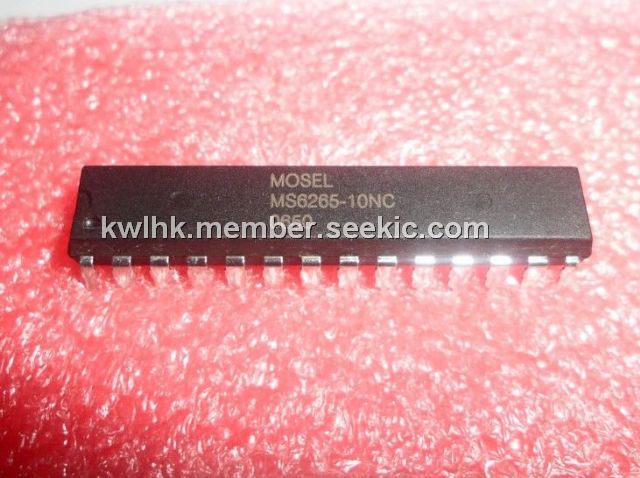

The MOSEL MS6265-10NC is a slow speed, very low data retention current, 64K bit static RAM, organized as 8192×8. The MS6265-10NC is designed to operate over industrial temperature range of -40 to +85℃. This SRAM is fully static in operation. Either of the chip enable controls can be used to take the device to its low data retention mode.
Parametrics
MS6265-10NC absolute maximum ratings: (1)Supply voltage: -0.3 to 7V; (2)Input voltage: -0.3 to VCC+0.3 V; (3)Input/Output voltage applied: -0.3 to 6 V; (4)Temperature under bias: -10 to +125 ℃; (5)Storage temperature: -55 to +150 ℃; (6)Power dissipation: 1.0 W; (7)DC output current: ±40(2) mA.
Features
MS6265-10NC features: (1)Available in 100ns(Max.); (2)Automatic power-down when chip disabled; (3)Lower power consumption; (4)TTL compatible interface levels; (5)Single 5V power supply; (6)Fully static operation; (7)Three state outputs; (8)Two chip enable for simple memory expansion; (9)64K bit EPROM pin compatible; (10)Wide temperature range: -40 to +85℃.
Diagrams
 |
