Product Summary

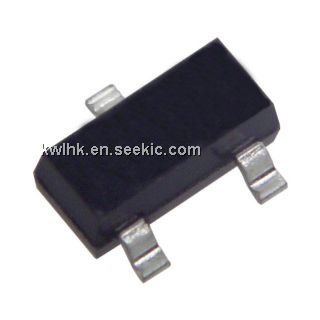

The NCP302LSN27T1 is a second generation ultra-low current voltage detector. It can be used in (1)microprocessor reset controller; (2)low battery detection; (3)power fail indicator; (4)battery backup detection.
Parametrics
NCP302LSN27T1 absolute maximum ratings: (1)input power supply voltage: 12 V; (2)delay capacitor pin voltage: -0.3 to Vin+0.3 V; (3)output voltage: -0.3 to Vin+0.3 V; (4)thermal resistance junction-to-air: 250 °C/W; (5)pin1 output current: 70 mA; (6)maximum junction temperature: +125°C; (7)operating ambient temperature range: -40 to +85°C; (8)storage temperature: -55 to +150 °C.
Features
NCP302LSN27T1 features: (1)quiescent current of 0.5 uA typical; (2)high accuracy undervoltage threshold of 2.0%; (3)externally programmable time delay generator; (4)wide operating voltage range of 0.8 V to 10 V; (5)complementary or open drain output; (6)active low or active high reset; (7)Pb-free packages are available.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() NCP302LSN27T1 |
![]() ON Semiconductor |
![]() Voltage Detectors / Monitors 2.7V Detector |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() NCP302LSN27T1G |
![]() ON Semiconductor |
![]() Voltage Detectors / Monitors 2.7V Detector w/Reset Low |
![]() Data Sheet |
![]()
|
|
