Product Summary

The OP77EZ is an ultralow offset voltage operational amplifier. Its outstanding gain of 10,000,000 or more is maintained over the full 10 V output range. This exceptional gain-linearity eliminates incorrectable system nonlinearities common in previous monolithic op amps. The OP77EZ provides superior performance in high closed-loop gain applications. Low initial VOS drift and rapid stabilization time, combined with only 50 mW power consumption, are significant improvements over previous designs. The OP77EZ is ideally suited for high-resolution instrumentation and other tight error budget systems.

Parametrics

OP77EZ absolute maximum ratings: (1)Supply Voltage: ±22 V; (2)Differential Input Voltage: ±30 V; (3)Input Voltage: ±22 V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range J and Z Packages: –65℃ to +150℃; (6)Operating Temperature Range: –25℃ to +85℃; (7)Junction Temperature (Tj): –65℃ to +150℃; (8)Lead Temperature (Soldering, 60 sec.): 300℃.

Features

OP77EZ features: (1)Outstanding Gain Linearity; (2)Ultrahigh Gain 5000 V/mV Min; (3)Low VOS Over Temperature 60 μV Max; (4)Excellent TCVos 0.3 μV/℃ Max; (5)High PSRR 3 μV/V Max; (6)Low Power Consumption 60 mW Max; (7)Fits OP07, 725,108A/308A, 741 Sockets; (8)Available in Die Form.

Diagrams

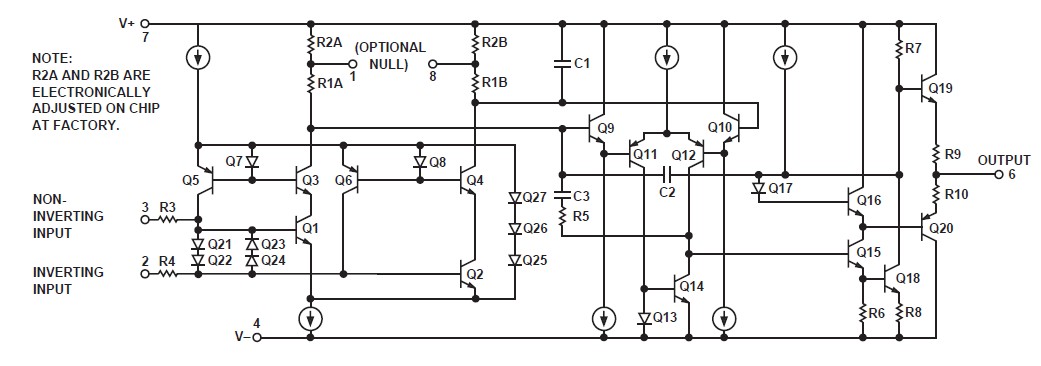

OP77EZ diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

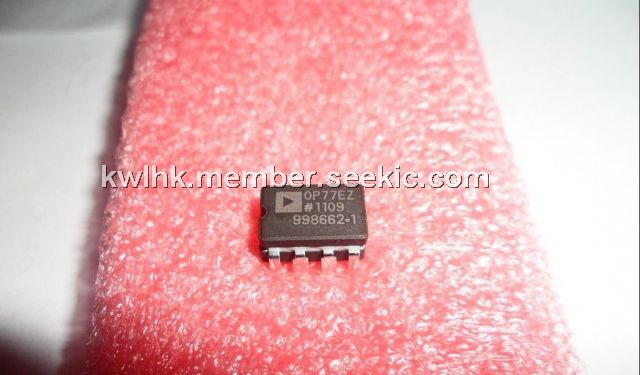

OP77EZ
OP77EZ

IC OPAMP GP 600KHZ PREC 8CDIP
Data Sheet
0-1: $6.49
1-10: $5.90
10-100: $5.01
100-250: $4.57
250-500: $4.28
500-1000: $3.93
