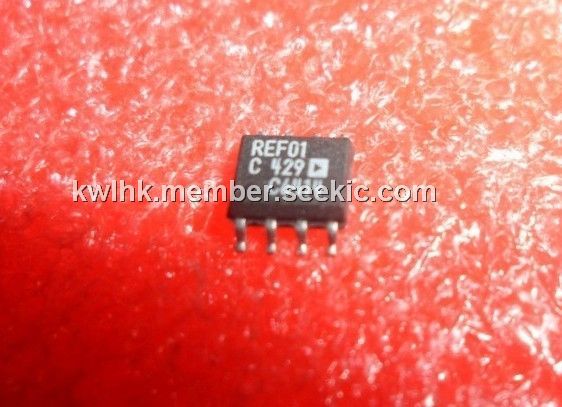

Product Summary

The REF-01 Precision voltage reference provides a stable + 10V output which can be adjusted over a +_3% range with minimal effect or temperature stability. Single-suplly operation over an input voltage range of 12V to 40V. Low current drain of 1mA, and excellent temperature stablity are achieved with an improved Bandgap design.

Parametrics

The absolute maximum ratings of REF01C are
(1)Input Voltage:30V;
(2)Output Short-Circuit Duration(to Ground or VIN): Indefinite;
(3)Operating Temperature Range: -40°C to +85°C

Features

The features of REF01C can be summarized as
(1)10 Volt Output:±0.3% Max;
(2)Adjustment Range:±3% Min;
(3)Excellent Temperature Stability:8.5ppm/°C Max;
(4)Low Noise:30±Vp-p Max;
(5)Low Supply Current:1.4mA Max;
(6)Wide Input Voltage Range:12V to 40V High Load-Driving Capability:20mA

Diagrams

<DIV><IMG alt="REF01C Pin Configuration" src="http://www.seekic.com/uploadfile/ic-mfg/2012716202515246.jpg" border=0></DIV>

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
REF01CESA
REF01CESA
Maxim Integrated Products
Voltage & Current References
Data Sheet
Negotiable
REF01CESA+
REF01CESA+
Maxim Integrated Products
Voltage & Current References 10V Precision Voltage Reference
Data Sheet
0-1: $1.97
1-25: $1.57
25-50: $1.48
50-100: $1.31
REF01CESA+T
REF01CESA+T
Maxim Integrated Products
Voltage & Current References 10V Precision Voltage Reference
Data Sheet
0-1615: $1.27
1615-2500: $1.27
REF01CESA-T
REF01CESA-T
Maxim Integrated Products
Voltage & Current References
Data Sheet
Negotiable
REF01CJ
REF01CJ

IC VREF SERIES PREC 10V TO-99-8
Data Sheet
0-1: $10.06
REF01CN8
REF01CN8

IC VREF SERIES PREC 10V 8-PDIP
Data Sheet
0-3350: $1.29
REF01CN8#PBF
REF01CN8#PBF

IC VREF SERIES PREC 10V 8-PDIP
Data Sheet
0-200: $1.29
REF01CP-G106
REF01CP-G106
Maxim Integrated Products
Voltage & Current References
Data Sheet
Negotiable
