Product Summary
The SAA7324H/M2B is a single chip combining the functions of a CD decoder, digital servo and bitstream DAC. The decoder/servo part is based on the SAA7324H/M2B and is software compatible with this design. Extra functions are controlled by use of shadow registers. Supply of this Compact Disc IC does not convey an implied license under any patent right to use this IC in any Compact Disc application.
Parametrics
SAA7324H/M2B absolute maximum ratings: (1)VDD, supply voltage note 1: -0.5 to +3.6 V; (2)VI(max), maximum input voltage, any input: -0.5 VDD to + 0.5 V, pins RESET, SDA, SCL, RAB and SILD: -0.5 to +5.5 V; (3)VO, output voltage (any output): -0.5 to +3.6 V; (4)VDD(diff), difference between VDDA, VDDD and Vpos: ±0.25 V; (5)IO, output current (continuous): ±20 mA; (6)II(d), DC input diode current (continuous): ±20 mA; (7)Ves, electrostatic handling note 2: -2000 to +2000 V, note 3: -200 to +200 V; (8)Tamb, ambient temperature: -10 to +70 °C; (9)Tstg, storage temperature: -55 to +125 °C.
Features
SAA7324H/M2B features: (1)Integrated bitstream DAC with differential outputs, operating at 96fs with 3rd-order noise shaper; typical performance of -90 dB signal-to-noise ratio; (2)Separate serial input and output interfaces allow data loopback mode for use of onboard DAC with external Electronic Shock Absorption (ESA)systems; (3)Up to 4 times speed mode; (4)Low voltage operation at up to 2 times speed; (5)Lock-to-disc mode; (6)Full error correction strategy, t = 2 and e = 4; (7)Full CD graphics interface; (8)All standard decoder functions implemented digitally on chip; (9)FIFO overflow concealment for rotational shock resistance; (10)Digital audio interface (EBU), audio and data; (11)Two and four times oversampling integrated digital filter, including fs mode; (12)Audio data peak level detection; (13)Kill interface for external DAC deactivation during digital silence.

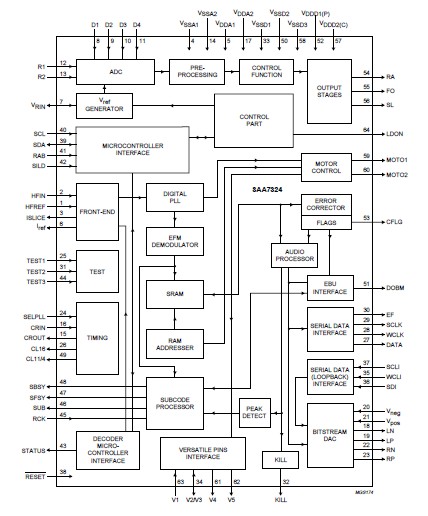

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() SAA7324H/M2B,557 |
![]() NXP Semiconductors |
![]() Encoders, Decoders, Multiplexers & Demultiplexers COMPACT DISC SYSTEMS |
![]() Data Sheet |
![]() Negotiable |
|
||||
