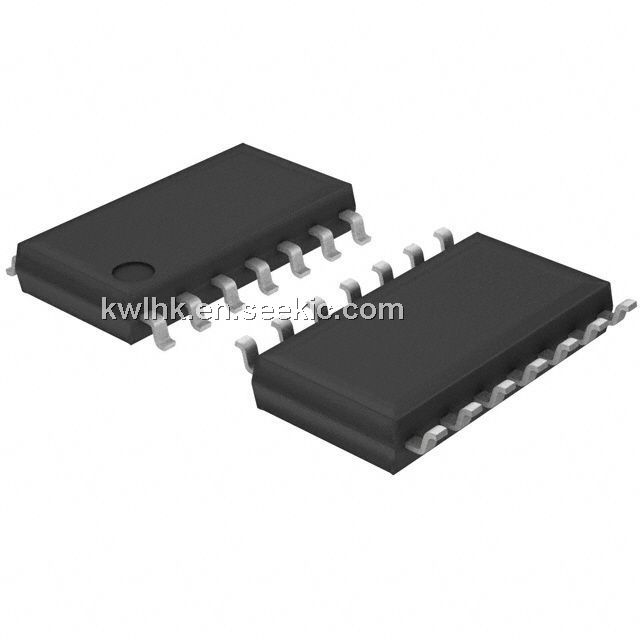

Product Summary

The SN74F32DWR is a quadruple 2-input positive-or gate. It contains four independent 2-input positive-OR gates. They perform the Boolean functions Y = A.B or Y = A + B in positive logic.

Parametrics

SN74F32DWR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage, VI: –1.2 V to 7 V; (3)Input current range:–30 mA to 5 mA; (4)Voltage range applied to any output in the high state:–0.5 V to VCC; (5)Current into any output in the low state: 40 mA; (6)Package thermal impedance: 127°C/W; (7)Storage temperature range: -65°C to 150°C.

Features

SN74F32DWR features: (1)Package Options Include Plastic; (2)Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs.

Diagrams

SN74F32DWR pin connection
