Product Summary

The TS393CDT is a micropower dual CMOS voltage comparator. The device incorporates overvoltage protection and temperature protection that disables the circuit at overtemperature. Similar performances are offered by the dual micropower comparator TS3702 with a push-pull CMOS output. Thus response times remain similar to the LM393.

Parametrics

TS393CDT absolute maximum ratings: (1)Supply Voltage: 18 V; (2)Differential Input Voltage: ±18 V; (3)Input Voltage: 18 V; (4)Output Voltage: 18 V; (5)Output Current: 20 mA; (6)Forward Current in ESD Protection Diodes on Inputs: 50 mA; (7)Power Dissipation: 1250 mW; (8)Storage temperature range: -50 to +150 °C.

Features

TS393CDT features: (1)fast response time: 2.5μs typ for 5mV overdrive; (2)pin-to-pin and functionally compatible with bipolar LM393; (3)extremely low supply current: 9mA typ / comparator; (4)wide single supply range 2.7V TO 16V or dual supplies (±1.35V to ±8V); (5)extremely low input bias current: 1pA typ; (6)extremely low input offset currents: 1pA typ; (7)input common-mode voltage range includes GND; (8)high input impedance.

Diagrams

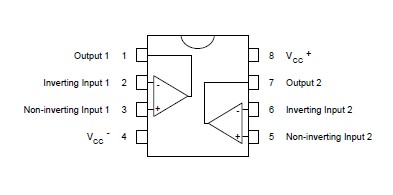

TS393CDT pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TS393CDT
TS393CDT

STMicroelectronics

Comparator ICs Micropower Dual Volt

Data Sheet

0-1950: $0.24
1950-2500: $0.24
