Product Summary

The XCS05-3VQG100C is a high-volume production FPGA solution that delivers all the key requirements for ASIC replacement up to 40,000 gates. These requirements include high performance, on-chip RAM, core solutions, and prices that, in high volume, approach and in many cases, are equivalent to mask programmed ASIC devices.

Parametrics

XCS05-3VQG100C absolute maximum ratings: (1)Supply voltage relative to GND:–0.5 4.0 V; (2)Input voltage relative to GND:–0.5 VCC + 0.5 V; (3)Voltage applied to 3-state output:–0.5 VCC + 0.5 V; (4)Storage Temperature: -65 to 150 °C; (5)Junction temperature: +135 °C.

Features

XCS05-3VQG100C features: (1)3.3V supply for low power with 5V tolerant I/Os; (2)Power down input; (3)Higher performance; (4)Faster carry logic; (5)More flexible high-speed clock network; (6)Latch capability in Configurable Logic Blocks; (7)Input fast capture latch; (8)Optional mux or 2-input function generator on outputs; (9)12 mA or 24 mA output drive; (10)Enhanced Boundary Scan; (11)Express Mode configuration; (12)Refer to Spartan-XL and Spartan FPGAs complete data sheet (DS060) for product description, AC and DC specifications; (13)Guaranteed to meet full electrical specifications; (14)ASIC replacement FPGA for high-volume production with on-chip RAM; (15)Density up to 1,862 logic cells or 40,000 system gates; (16)Streamlined feature set based on XC4000 architecture; (17)Broad set of AllianceCORE and LogiCORE predefined solutions available; (18)Unlimited reprogrammability.

Diagrams

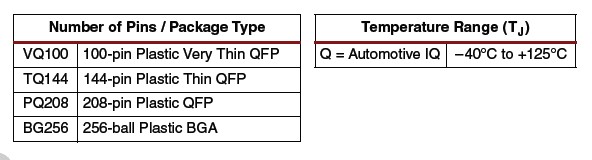

XCS05-3VQG100C dimension figure
