Product Summary

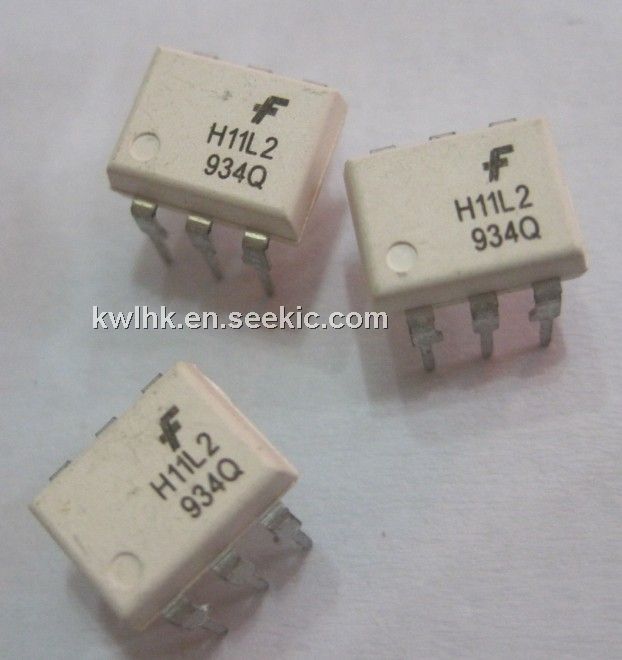

The H11L2 is a 6-Pin DIP optoisolator. The H11L2 has a gallium arsenide IRED optically coupled to a high-speed integrated detector with Schmitt trigger output. Designed for applications requiring electrical isolation, fast response time, noise immunity and digital logic compatibility. Applications are (1)Interfacing Computer Terminals to Peripheral Equipment; (2)Digital Control of Power Supplies; (3)Line Receiver — Eliminates Noise; (4)Digital Control of Motors and Other Servo Machine Applications; (5)Logic to Logic Isolator; (6)Logic Level Shifter — Couples TTL to CMOS.
Parametrics
H11L2 absolute maximum ratings: (1)Reverse Voltage VR: 6 Volts; (2)LED Power Dissipation @ TA = 25°C PD: 120 mW; (3)Output Voltage Range Vo: 0 to 16 Volts; (4)Supply Voltage Range VCC: 3 to 16 Volts; (5)Output Current IO: 50mA; (6)Maximum Operating Temperature(2)TA: -40 to +85 °C; (7)Storage Temperature Range(2)Tstg: -55 to +150 °C; (8)Soldering Temperature (10 s)TL: 260 °C.
Features
H11L2 features: (1)Guaranteed Switching Times — ton, toff < 4 ms; (2)Built–In On/Off Threshold Hysteresis; (3)High Data Rate, 1 MHz Typical (NRZ); (4)Wide Supply Voltage Capability; (5)Microprocessor Compatible Drive.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 H11L2 |
Everlight |
Logic Output Optocouplers Optocouplers |
Data Sheet |
|
|
||||||||||||
|
H11L2300 |
Fairchild Semiconductor |
Logic Output Optocouplers OPTO COUPLER SCHMITT TRIGGER |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11L2300W |
Fairchild Semiconductor |
Logic Output Optocouplers |
Data Sheet |
Negotiable |
|
||||||||||||
 |
H11L23S |
Fairchild Semiconductor |
Logic Output Optocouplers SM-DIP6 |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11L23SD |
Fairchild Semiconductor |
Logic Output Optocouplers SM-DIP6 |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11L2FM |
Fairchild Semiconductor |
Logic Output Optocouplers Optocoupler Schmitt Trigger |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11L2FR2M |
Fairchild Semiconductor |
Logic Output Optocouplers Optocoupler Schmitt Trigger |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11L2FR2VM |
Fairchild Semiconductor |
Logic Output Optocouplers Optocoupler Schmitt Trigger |
Data Sheet |
Negotiable |
|
||||||||||||
