Product Summary

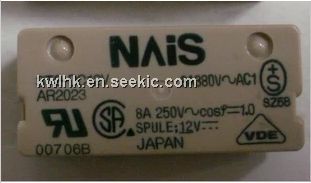

The st2-dc12v is an ic drivable pc board relay.
Parametrics
ST2-DC12V absolute maximum ratings: (1)initial contact resistance, max.: 30 mΩ; (2)Max. operating speed: 20 cpm (at rated load); (3)Initial insulation resistance: 1,000 MΩ W (at 500 V DC); (4)Between contact sets: 2,000 Vrms; (5)Surge voltage between coil and contact: Min. 6,000 V; (6)Operate time*4 (at nominal voltage): Max. 15 ms (Approx. 10 ms); (7)Ambient temp: –40°C to +60°C.
Features
ST2-DC12V features: (1)sealed to meet the combination process of automatic wave soldering and cleaning needs; (2)latching types available; (3)High switching capacity and high sensitivity in subminiature size 150 mW pick-up, 8 A inrush capacity: 51 A for 1a1b, 35 A for 2a; (4)High shock and vibration resistance Shock: 20 G, Vibration: 10 to 55 Hz at double amplitude of 2 mm.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ST2-DC12V |
Panasonic Electric Works |
General Purpose / Industrial Relays 8 AMP 12VDC DPST NO SEALED |
Data Sheet |
Negotiable |
|
||||||||||||
|
ST2-DC12V-F |
Panasonic Electric Works |
General Purpose / Industrial Relays 8A 12VDC DPST NON-LATCHING PCB |
Data Sheet |
|
|
||||||||||||
