Product Summary

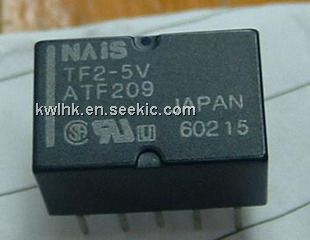

The TF2-5V is a small polarized relay with high sensitivity.
Parametrics
TF2-5V absolute maximum ratings: (1)Initial contact resistance, max. (By voltage drop 6 V DC 1 A): 50 mΩ; (2)Nominal operating power Single side stable: 260 mW; (3)FCC surge voltage between open contacts: 1500 V; (4)Operate time [Set time]*3 (at 20°C): Max. 4 ms (Approx. 2 ms; (5)Conditions for operation, transport and storage*8 (Not freezing and condensing at low temperature)Ambient temperature: –40°C to +70°C; (6)Humidity: 5 to 85% R.H.; (7)Unit weight Approx. 2 g .
Features
TF2-5V features: (1)High sensitivity: 80 mW Nominal operating power (Single side stable 3-12 V type); (2)Surge voltage withstand: 1500 V FCC Part 68; (3)Minimal magnetic interference allows high density mounting; (4)Sealed construction allows automatic cleaning; (5)Self-clinching terminal also available.

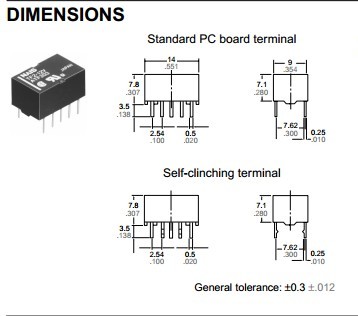

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TF2-5V |
|
RELAY GENERAL PURPOSE DPDT 1A 5V |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
TF2-5V |
|
RELAY GENERAL PURPOSE DPDT 1A 5V |
Data Sheet |
Negotiable |
|
||||
|
TF2-9V |
Panasonic Electric Works |
RELAY DPDT 1A 9VDC PCB |
Data Sheet |
Negotiable |
|
||||
|
TF2-L2-4.5V |
Panasonic Electric Works |
RELAY LATCHING 1A 4.5VDC PCB |
Data Sheet |
Negotiable |
|
||||
|
TF2-61EB1 61.4400MHZ |
|
MONO CRYSTAL FILTER 61.4400MHZ S |
Data Sheet |
Negotiable |
|
||||
|
TF2-48V |
Panasonic Electric Works |
RELAY DPDT 1A 48VDC PCB |
Data Sheet |
Negotiable |
|
||||
|
TF2-4.5V |
Panasonic Electric Works |
RELAY DPDT 1A 4.5VDC PCB |
Data Sheet |
Negotiable |
|
||||
