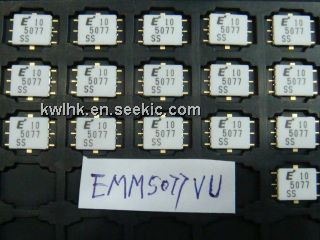

Product Summary

The EMM5077VU is a power amplifier MMIC that contains a two stage amplifier, internally matched, for standard communications band in 3.4 to 5.0GHz frequency range. Eudynas stringent quality assurance program assures the highest reliability and consistent performance.

Parametrics

EMM5077VU absolute maximum ratings: (1)Drain-source voltage VDD: 10V; (2)Gate-source voltage VGG: -3V; (3)Input power pin: +26dBm; (4)Storage temperature Tstg: -55 to +125℃.

Features

EMM5077VU features: (1)High output power: Pout = 31.0 dBm (Typ.); (2)High linear gain: GL = 26 dB(Typ.); (3)Broad band: 3.4 to 5.0 GHz; (4)Impedance matched zin/zout = 50Ω; (5)Small Hermetic metal-ceramic SMT package(VU).

Diagrams

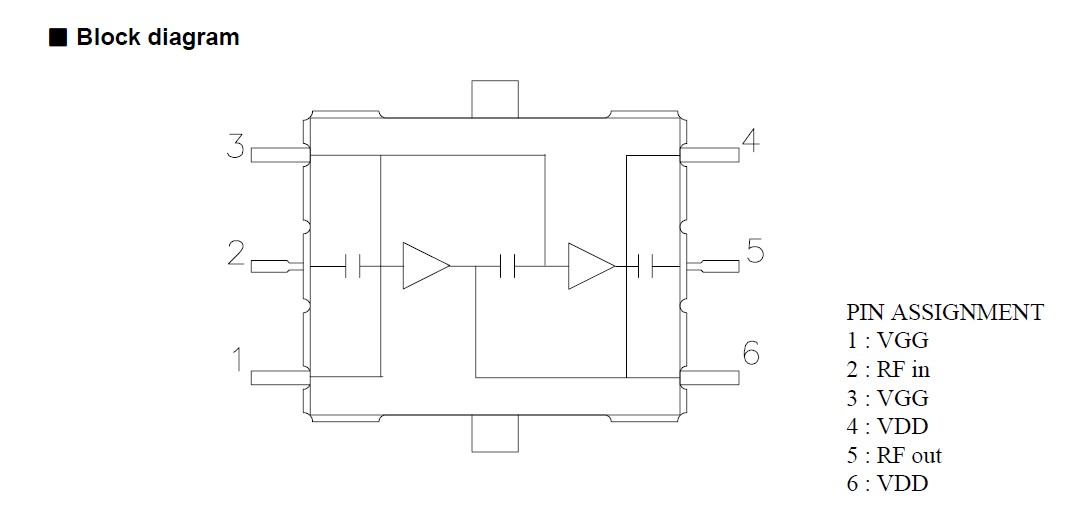

EMM5077VU pin connection
