Product Summary

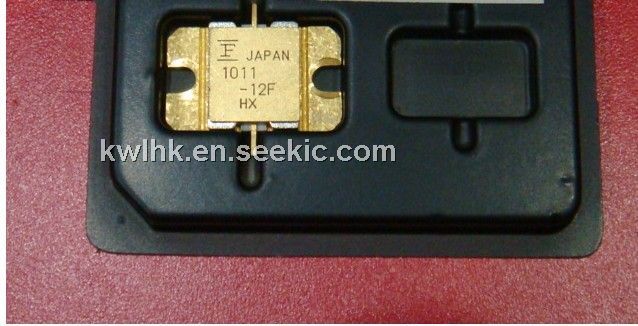

The flm1011-12f is a ku-band internally matched fet. The FLM1011-12F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a 50 ohm system.
Parametrics
flm1011-12f absolute maximum ratings: (1)Drain-Source Voltage VDS: 15 V; (2)Gate-Source Voltage VGS: -5 V; (3)Total Power Dissipation PT Tc = 25°C: 57.6 W; (4)Storage Temperature Tstg: -65 to +175°C; (5)Channel Temperature Tch: 175°C.
Features
flm1011-12f features: (1)High Output Power: P1dB = 40.5dBm (Typ.); (2)High Gain: G1dB = 6.0dB (Typ.); (3)High PAE: ηadd = 25% (Typ.); (4)Low IM3 = -45dBc@Po = 29.5dBm; (5)Broad Band: 10.7 ~ 11.7GHz; (6)Impedance Matched Zin/Zout = 50Ω; (7)Hermetically Sealed.
Diagrams
