Product Summary

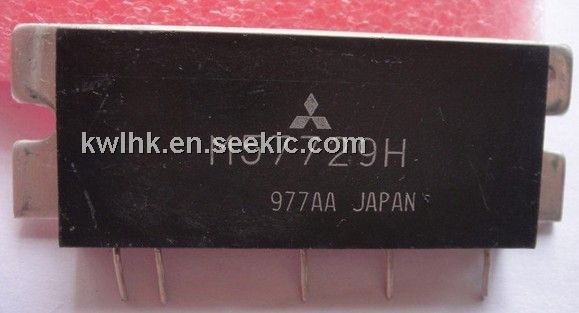

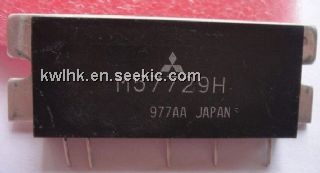

The M57729H is a 450-470mhz 12.5v, 30w, fm mobile radio.

Parametrics

M57729H absolute maximum ratings: (1)Vcc Supply voltage: 17V; (2)Icc Total current: 10A; (3)Pin(max) Input power Zg = Zl = 50 Q: 0.4W; (4)Po(max) Output power Zg = Zl = 50 Q: 40W; (5)Tc(op) Operation case temperature: -30 to 110°C; (6)Tstg Storage temperature: -40 to 110°C.

Features

M57729H features: (1)f Frequency range Pin = 0.3W Vcc = 12.5V Zg = Zl = 50 Q: 450 to 470MHz; (2)Po Output power: 30W; (3)2fo 2nd. harmonic: -30dBc; (4)3fo 3rd. harmonic: -30dBc; (5)P in Input VSWR: 2.8w.

Diagrams

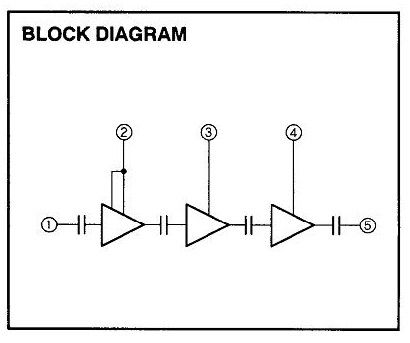

M57729H block diagram
