Product Summary
The MHL19338N is a PCS Band RF Linear LDMOS Amplifier. It is designed for ultra - linear amplifier applications in 50 ohm systems operating in the PCS frequency band. A silicon FET Class A design of the MHL19338N provides outstanding linearity and gain. In addition, the excellent group delay and phase linearity characteristics are ideal for digital modulation systems, such as TDMA and CDMA.
Parametrics
MHL19338N absolute maximum ratings: (1)DC Supply Voltage VDD: 30 Vdc; (2)RF Input Power Pin: +10 dBm; (3)Storage Temperature Range Tstg: - 40 to +100 ℃; (4)Operating Case Temperature Range: TC - 20 to +100 ℃.
Features
MHL19338N features: (1)Excellent Phase Linearity and Group Delay Characteristics; (2)Ideal for Feedforward Base Station Applications; (3)N Suffix Indicates Lead-Free Terminations.

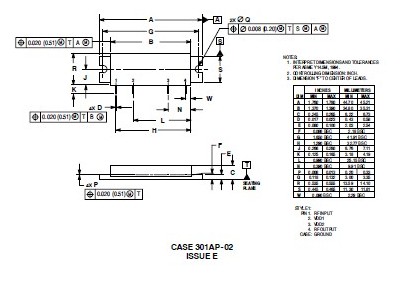

Diagrams
