Product Summary

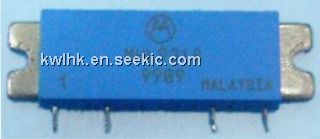

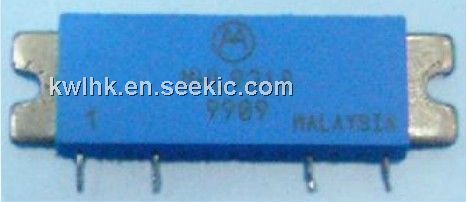

The MHL9318 is a RF Line LDMOS Amplifier which designed for ultra–linear amplifier applications in 50 ohm systems operating in the cellular frequency band. A silicon FET Class A design provides outstanding linearity and gain. In addition, the excellent group delay and phase linearity characteristics are ideal for the most demanding analog or digital modulation systems, such as TDMA and CDMA. The MHL9318 is ideal for feedforward base station applications and for use in TDMA and CDMA Multi-arrier applications.
Parametrics
MHL9318 absolute maximum ratings: (1)DC Supply Voltage: VDD 30 Vdc; (2)RF Input Power: Pin +20 dBm; (3)Storage Temperature Range: Tstg –40 to +100 °C; (4)Operating Case Temperature Range: TC –20 to +100 °C.
Features
MHL9318 features: (1)Third Order Intercept: 49 dBm Typ; (2)Power Gain: 17.5 dB Typ (at f = 880 MHz); (3)Excellent Phase Linearity and Group Delay Characteristics.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MHL9318 |
Other |
|
Data Sheet |
Negotiable |
|
||||
