Product Summary

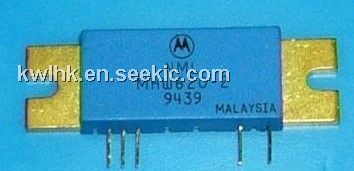

The MHW820-2 is an amplifier module. Applications are: (1)catv systems operating in the 40 to 870 mhz frequency range; (2)input stage amplifier in optical nodes, line extenders and trunk distribution amplifiers for catv systems; (3)driver amplifier in linear general purpose applications; (4)output stage amplifier on applications requiring low power dissipation.
Parametrics
MHW820-2 absolute maximum ratings: DC Supply Voltage VCC +28 Vdc RF Input Voltage (Single Tone) Vin +70 dBmV Operating Case Temperature Range TC –20 to +100 °C Storage Temperature Range Tstg –40 to +100 °C
Features
MHW820-2 features: (1)specified for 77–, 110– and 128–channel loading; (2)excellent distortion performance; (3)silicon bipolar transistor technology; (4)unconditionally stable under all load conditions.

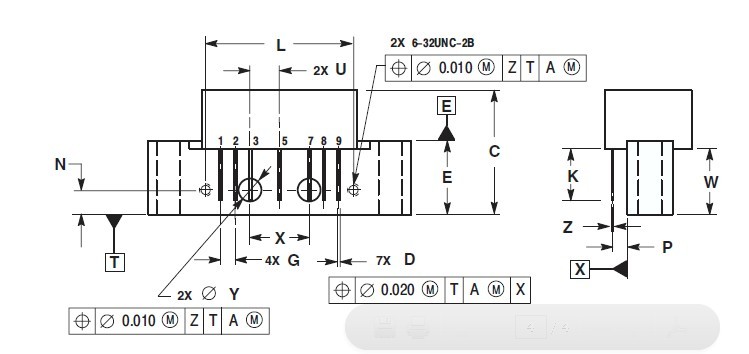

Diagrams
