Product Summary

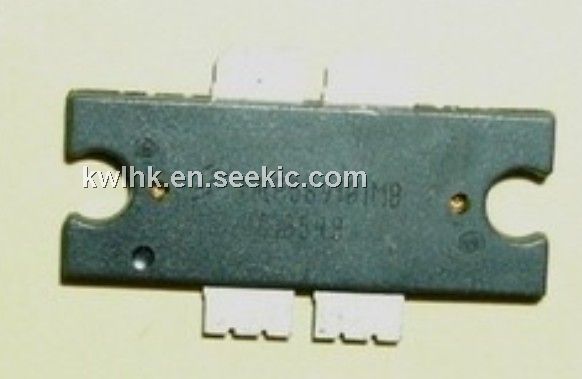

The MRF5S9101MB is an N-Channel Enhancement-Mode Lateral MOSFET. Designed for broadband commercial and industrial applications with frequencies up to 500 MHz. The high gain and broadband performance of the mrf5s9101mb makes it ideal for large - signal, common- source amplifier applications in 28 volt base station equipment.

Parametrics

MRF5S9101MB absolute maximum ratings: (1)Drain-Source Voltage, VDSS: -0.5 to +65 Vdc; (2)Gate-Source Voltage, VGS: -0.5, +15 Vdc; (3)Storage Temperature Range, Tstg: - 65 to +150℃; (4)Operating Junction Temperature, (1,2) TJ: 200℃.

Features

MRF5S9101MB features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters; (2)Internally Matched for Ease of Use; (3)Qualified Up to a Maximum of 32 VDD Operation; (4)Integrated ESD Protection; (5)200℃ Capable Plastic Package; (6)RoHS Compliant; (7)In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.

Diagrams

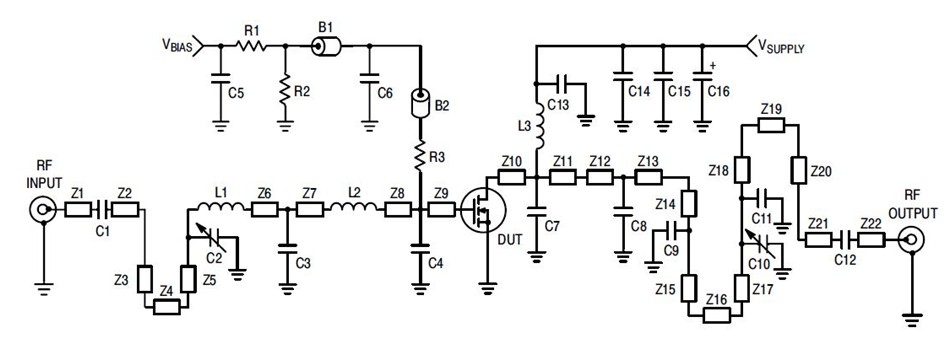

MRF5S9101MB block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRF5S9101MBR1
MRF5S9101MBR1

MOSFET RF N-CH 26V 100W TO2724
Data Sheet
0-500: $21.27
