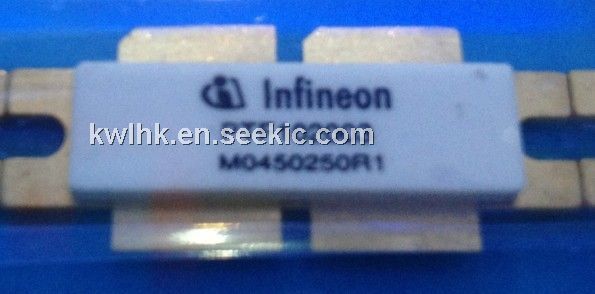

Product Summary

The PTF102003 is a 120–watt, internally matched LDMOS FET intended for WCDMA applications from 2110 to 2170 MHz. The PTF102003 is typically operates at 48% efficiency (P-1dB) and 14 dB linear gain. Full gold metallization ensures excellent device lifetime and reliability.

Parametrics

PTF102003 absolute maximum ratings: (1)Drain-Source Voltage, VDSS: 65 Volts; (2)Gate-Source Voltage, VGS: +15, -0.5 Volts; (3)Operating Junction Temperature, TJ: 200℃; (4)Total Device Dissipation, PD: 330 Watts; Above 25℃ derate by: 1.88 W/℃; (5)Storage Temperature Range, TSTG: –40 to +150℃; (6)Thermal Resistance (TCASE = 70°C), RθJC: 0.55℃/W.

Features

PTF102003 features: (1)internally matched; (2)Typical WCDMA Performance at 28 V: Average Output Power = 20 W atts; Gain = 14 dB; Efficiency = 22%; (3)Typical CW Performance at 28 V: Output Power at P1-dB = 120 W atts; Gain = 13 dB; Efficiency = 48%; (4)Full Gold Metallization; (5)Integrated ESD Protection; Class 1 (minimum) Human Body Model; (6)Excellent Thermal Stability; (7)Broadband Internal Matching; (8)Low HCI Drift; (9)Capable of Handling 10:1 VSWR @ 28 V ,120 Watts (CW) Output Power.

Diagrams

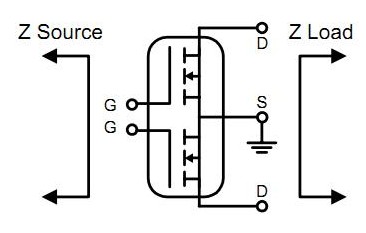

PTF102003 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PTF102003
PTF102003
TriQuint Semiconductor
RF Amplifier RF LDMOS Transistor
Data Sheet
Negotiable
