Product Summary
The FLL1500IU-2C is a 150 Watt GaAs FET that employs a push-pull design thatoffers ease of matching, greater consistency and a broader bandwidth for highpower L-band amplifiers. This product is targeted to reduce the size andcomplexity of highly linear, high power base station transmitting amplifiers.This new product is well suited for use in W-CDMA and IMT 2000 base stationamplifiers as it offers high gain, long term reliability and ease of use.
Parametrics
1500IU-2C absolute maximum ratings: (1)Drain-Source Voltage VDS: 15 V; (2)Gate-Source Voltage VGS: -5 V; (3)Total Power Dissipation PT Tc = 25°C: 187.5 W; (4)Storage Temperature Tstg: -65 to +175°C; (5)Channel Temperature Tch: 175°C.
Features
1500IU-2C features: (1)Push-Pull Configuration; (2)High Power Output: 150W (Typ.); (3)High PAE: 48% (Typ.); (4)Broad Frequency Range: 2100 to 2200 MHz.; (5)Suitable for class AB operation.

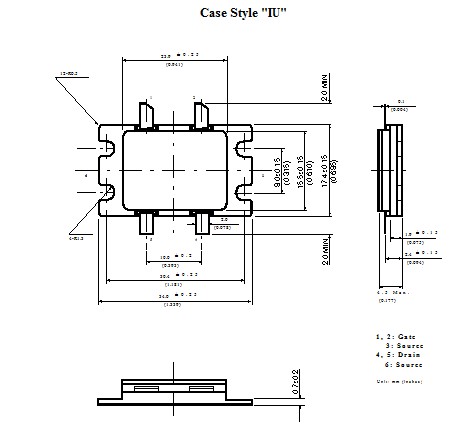

Diagrams
