Product Summary

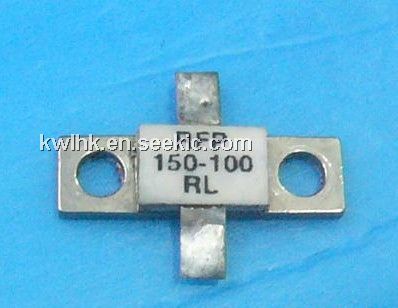

The RFP150-100RL is a Flanged Resistor.
Parametrics
RFP150-100RL absolute maximum ratings: (1)drain-source voltage: Voss=120v; (2)drain-gate voltage (Rqs=1 MO): Vmr=120v; (3)gate-source voltage: Vgs=±20v; (4)drain current, RMS Continuous: Id=10A; Pulsed, Idm=25A; (5)POWER DISSIPATION @ TC=25℃: PT=60w; Derate above TC=25℃: 0.48w/℃; (6)operating and storage, temperature: Tstg=-55 to 150℃.
Features
RFP150-100RL features: (1)SOA is power-dissipation limited; (2)Nanosecond switching speeds; (3)Linear transfer characteristics; (4)High input impedance m Majority carrier device.
Diagrams
